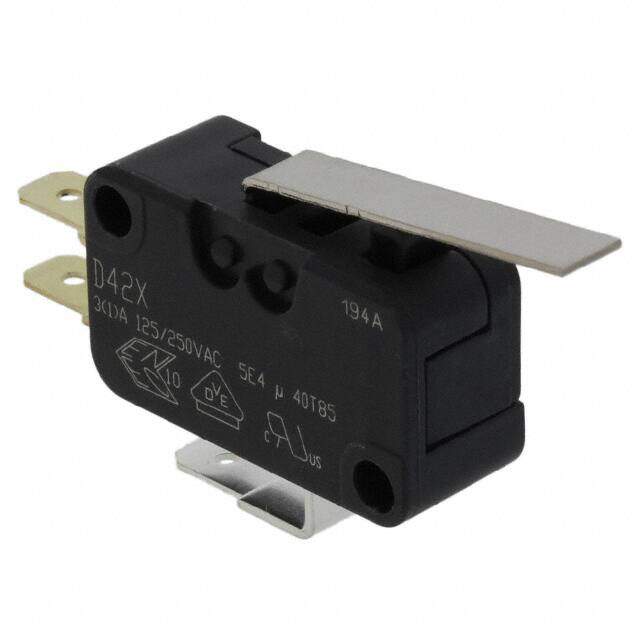

D429-R1LD-G2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 3A 250V
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.531544
≥1 USD $4.531544
≥10 USD $4.275044
≥100 USD $4.033062
≥500 USD $3.804775
≥1000 USD $3.589408
Inventory: 1114
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series D4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 3A AC
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Electrical Life 50,000 Cycles
Contact Current Rating 3A
Operating Force 22gf
Overtravel 0.090 (2.3mm)
Differential Travel 0.031 (0.8mm)
Pretravel 0.125 (3.2mm)
Operating Position 0.600 (15.2mm)
Release Force 5.099gf
Compliance
RoHS Status ROHS3 Compliant
