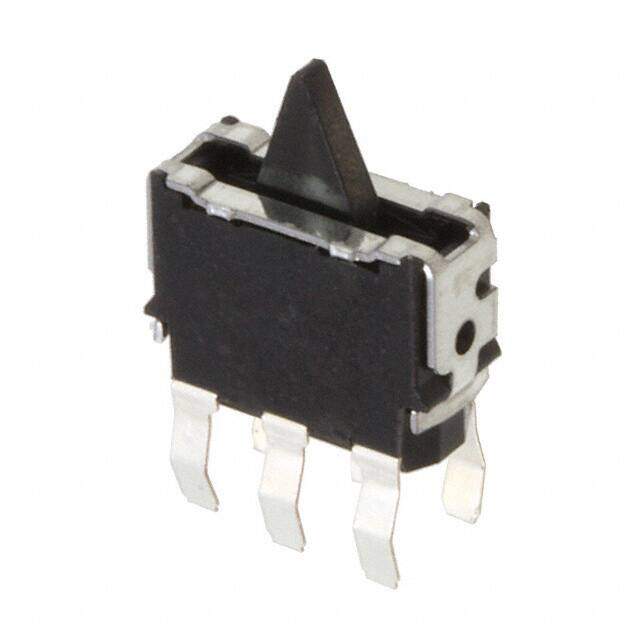

ESE-24SV6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECTOR SPDT 10MA 5V
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.974172
≥1 USD $0.974172
≥200 USD $0.388618
≥400 USD $0.375489
≥1000 USD $0.370238
Inventory: 7719
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Operating Position 0.317 (8.05mm)
Operating Force 35gf
Mechanical Life 50,000 Cycles
Throw Configuration SPDT
Electrical Life 50,000 Cycles
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Angled Toggle (Detector)
Termination Style PC Pin
Current Rating 10mA
Current Rating (Amps) 10mA DC
Voltage - Rated DC 5V
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ESE24
Published 2012
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Number of Pins 6
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
