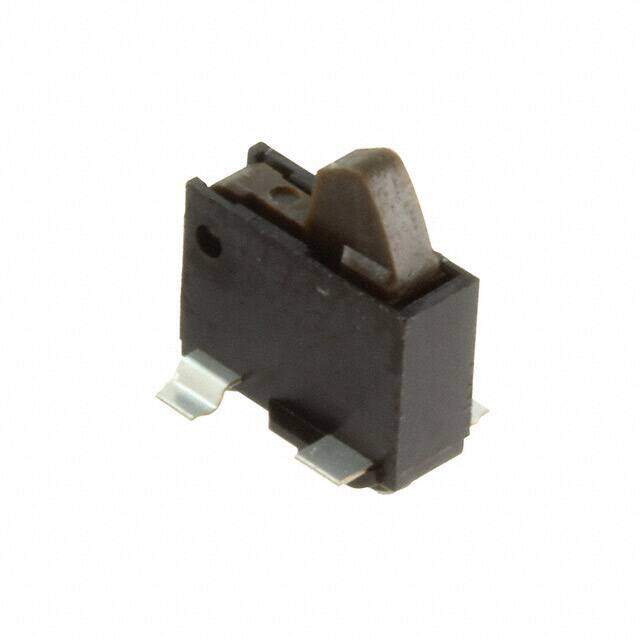

ESE-22MV21T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECTOR SPST-NO 10MA 5V
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.38456
≥100 USD $0.362208
≥500 USD $0.314512
≥1000 USD $0.285331
≥3000 USD $0.265426
Inventory: 129042
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Copper, Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Manufacturer Package Identifier ESE-22MV21T
Technical
Operating Temperature -10°C~70°C
Packaging Tape & Reel (TR)
Published 2010
Series ESE22
JESD-609 Code e2
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8536.50.70.00
Voltage - Rated DC 5V
Current Rating (Amps) 10mA DC
Orientation Straight
Current Rating 10mA
Termination Style SMD (SMT) Tab
Voltage - Rated AC 100V
Body Length or Diameter 5.7mm
Actuator Type Angled Toggle (Detector)
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 500mOhm
Contact Current(DC)-Max 0.01A
Electrical Life 50,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 5V
Mechanical Life 50,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 10mA
Operating Force 30gf
Contact (DC) Max Rating R Load .01A@5VDC
Operating Position 0.232 (5.9mm)
Life (Cycles) 50000 cycles
Dimensions
Height 6.6mm
Width 1.9mm
Actuator Length 2.2mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
