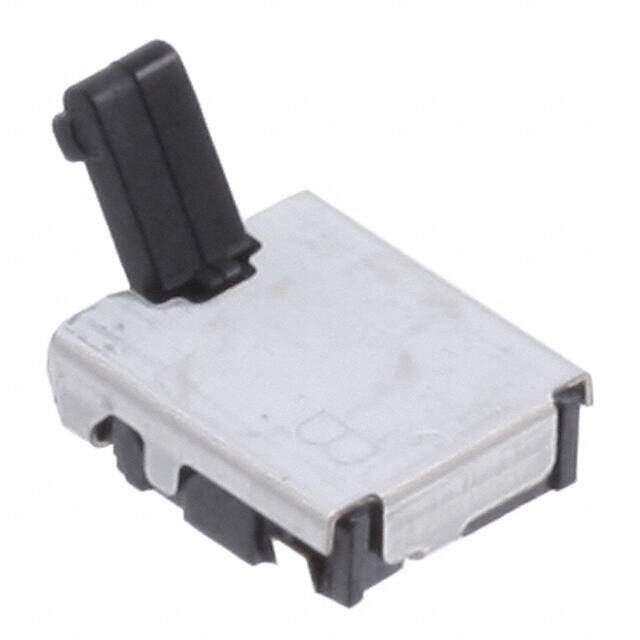

ESE-13V05A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECTOR SPST-NO 10MA 5V
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.6248
≥100 USD $0.600512
≥500 USD $0.521224
≥1000 USD $0.475587
≥3000 USD $0.441954
Inventory: 1132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Operating Position 15°
Pretravel 15°
Overtravel 60°
Operating Force 30gf
Mechanical Life 50,000 Cycles
Throw Configuration SPST
Electrical Life 50,000 Cycles
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Angled Toggle (Detector)
Termination Style J Lead
Current Rating 10mA
Current Rating (Amps) 10mA DC
Voltage - Rated DC 5V
Min Operating Temperature -10°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ESE13
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -10°C~60°C
Physical
Number of Pins 4
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
