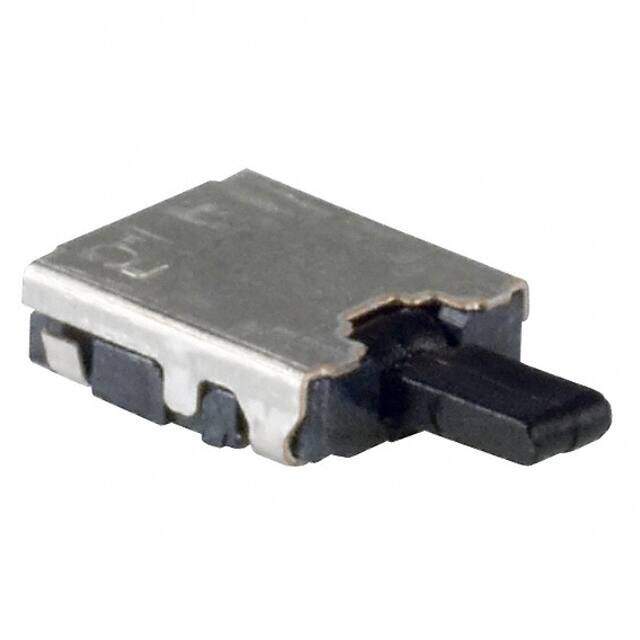

ESE-13H01A
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Snap Action, Limit Switches
Description
Detector switch,SMT,SPNO,1VL,no boss
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.54246
≥1 USD $0.54246
≥10 USD $0.51176
≥100 USD $0.482792
≥500 USD $0.455458
≥1000 USD $0.429684
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Copper, Tin
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case SMD/SMT
Technical
Operating Temperature -10°C~60°C
Packaging Tape & Reel (TR)
Published 2010
Series ESE13
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination J-Bend
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8536.50.70.00
Voltage - Rated DC 5V
Current Rating (Amps) 10mA DC
Orientation Right Angle
Reach Compliance Code unknown
Current Rating 10mA
Termination Style J Lead
Actuator Type Angled Toggle (Detector)
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 500mOhm
Contact Current(DC)-Max 0.01A
Electrical Life 50,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 5V
Mechanical Life 50,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 10mA
Operating Force 30gf
Contact (DC) Max Rating R Load .01A@5VDC
Overtravel 60°
Pretravel 15°
Dimensions
Height 1.2mm
Width 3.6mm
Actuator Length 2.3mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
