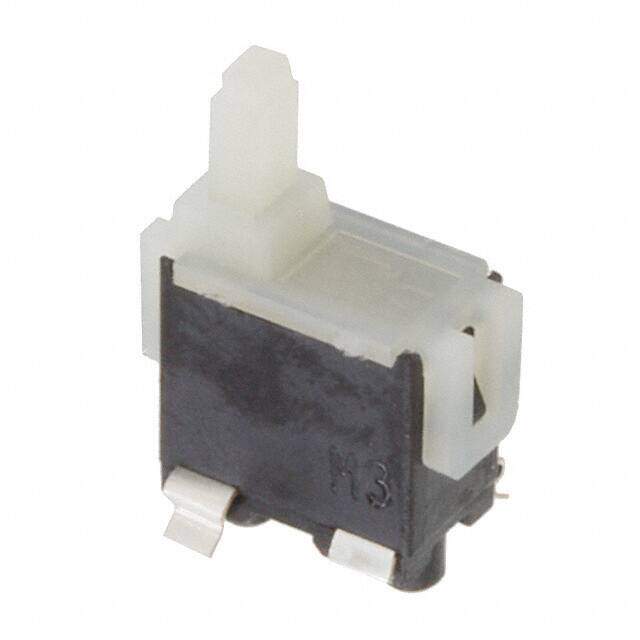

ESE-11MV5T
RoHS
/
Package SMD/SMT
Category Switches / Snap Action, Limit Switches
Description
Electromechanical Switch Detect Switch N.O. SPST 0.01A Embossed T/R
PDF
/
Inventory: 4073
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 2.6mm
Technical
Operating Position 0.305 (7.75mm)
Operating Force 35gf
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 5V
Throw Configuration SPST
Electrical Life 50,000 Cycles
Contact Resistance 500mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Overtravel Plunger
Termination Style Gull Wing
Orientation Straight
Current Rating (Amps) 10mA DC
Voltage - Rated DC 5V
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Termination Gull Wing
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series ESE11
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -10°C~70°C
Physical
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
