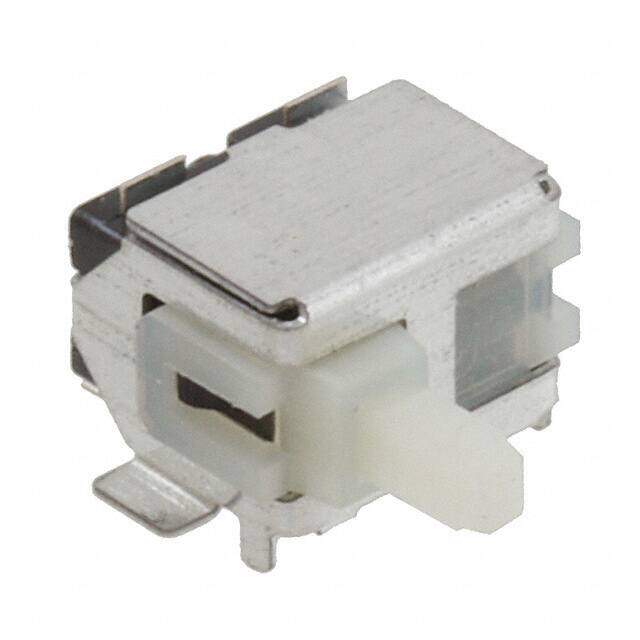

ESE-11MH4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECTOR SPST-NO 10MA 5V
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.54176
≥100 USD $1.402368
≥500 USD $1.218184
≥1000 USD $1.104004
≥3000 USD $1.027858
Inventory: 233
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Operating Position 0.132 (3.35mm)
Contact (DC) Max Rating R Load .01A@5VDC
Operating Force 35gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 50,000 Cycles
Throw Configuration SPST
Electrical Life 50,000 Cycles
Contact Voltage(DC)-Max 5V
Contact Current(DC)-Max 0.01A
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Overtravel Plunger
Body Breadth 6.1 mm
Body Length or Diameter 6.4mm
Termination Style Gull Wing
Current Rating 10mA
Current Rating (Amps) 10mA DC
Voltage - Rated DC 5V
HTS Code 8536.50.70.00
Terminal Finish Tin/Copper (Sn/Cu)
ECCN Code EAR99
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Series ESE11
Published 2012
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Number of Pins 2
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
