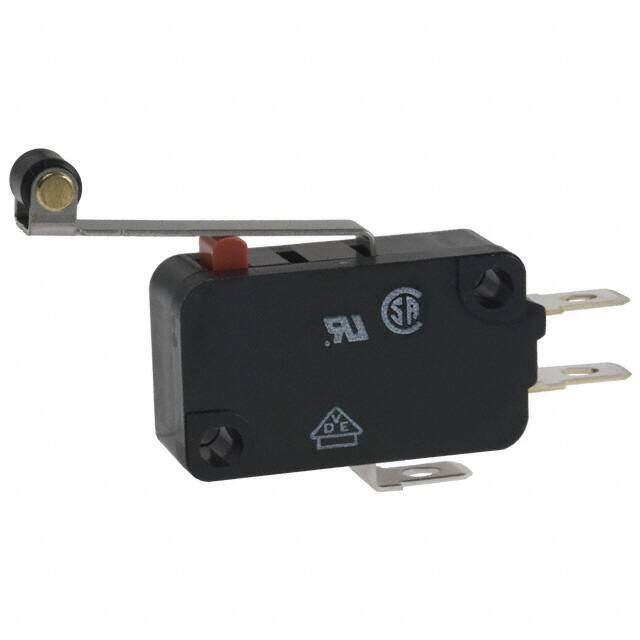

VX-56-1A3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $5.09
Unit Price: USD $5.0864
≥1 USD $5.0864
≥10 USD $4.06648
≥100 USD $3.862848
≥500 USD $3.76134
≥1000 USD $3.253008
≥3000 USD $3.049702
Inventory: 182
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 10.3mm
Length 49.2mm
Technical
Pre-Travel-Max 4 mm
Operating Position 0.815 (20.7mm)
Pretravel 0.157 (4.0mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.062 (1.6mm)
Contact Current(AC)-Max 5A
Operating Force 30gf
Contact Current Rating 5A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 50,000,000 Cycles
Max Voltage Rating (DC) 250V
Number of Poles 1
Electrical Life 500,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 5A
Contact Resistance 30mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Current Rating 5A
Depth 10.3mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
Number of Positions 2
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series VX
Published 2004
Packaging Tray
Operating Temperature -25°C~80°C
Physical
Actuator Material Polyacetar, Resin, Stainless Steel
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw, Solder
Contact Material Silver
Supply Chain
Factory Lead Time 10 Weeks
