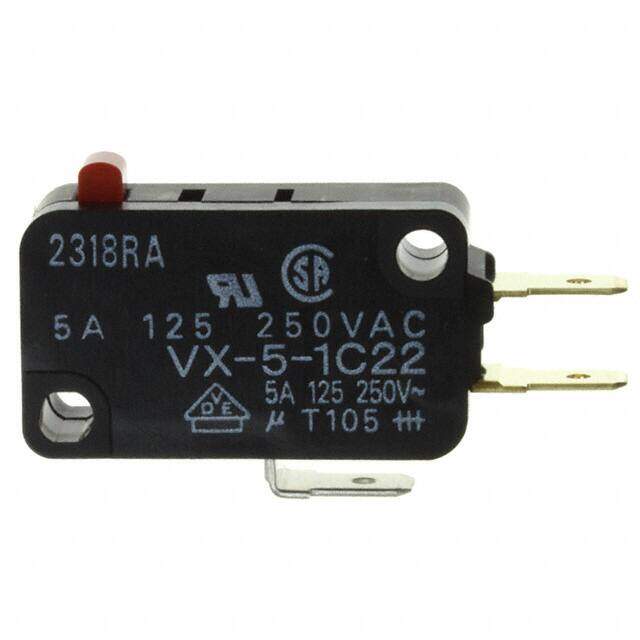

VX-5-1C22
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $4.12
Unit Price: USD $4.1184
≥1 USD $4.1184
≥10 USD $3.63
≥100 USD $3.388
≥500 USD $3.22674
≥1000 USD $2.742696
≥3000 USD $2.500696
Inventory: 335
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Weight 6.2g
Technical
Operating Temperature -25°C~80°C
Packaging Tray
Published 2004
Series VX
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect
ECCN Code EAR99
Number of Positions 2
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Orientation Straight
Ingress Protection IP40
Depth 10.3mm
Current Rating 5A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 5A
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 500,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 250V
Mechanical Life 50,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 25gf
Contact Current(AC)-Max 5A
Overtravel 0.040 (1.0mm)
Differential Travel 0.012 (0.3mm)
Pretravel 0.047 (1.2mm)
Operating Position 0.579 (14.7mm)
Release Force 3.059gf
Dimensions
Length 37.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
