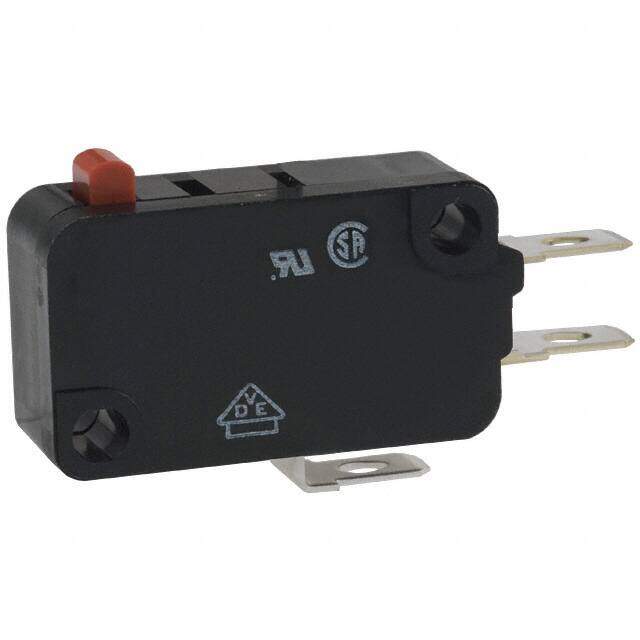

VX-5-1A3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $4.12
Unit Price: USD $4.1184
≥1 USD $4.1184
≥10 USD $3.63
≥100 USD $3.388
≥500 USD $3.226784
≥1000 USD $2.742696
≥3000 USD $2.500678
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Panel, Screw, Solder
Mounting Type Chassis Mount
Weight 6.2g
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2004
Series VX
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Orientation Straight
Ingress Protection IP40
Depth 10.3mm
Current Rating 5A
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 5A
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 500,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 250V
Mechanical Life 50,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 50gf
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Overtravel 0.040 (1.0mm)
Differential Travel 0.012 (0.3mm)
Pretravel 0.047 (1.2mm)
Operating Position 0.579 (14.7mm)
Release Force 5.099gf
Actuator Travel 2.2 mm
Dimensions
Length 37.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
