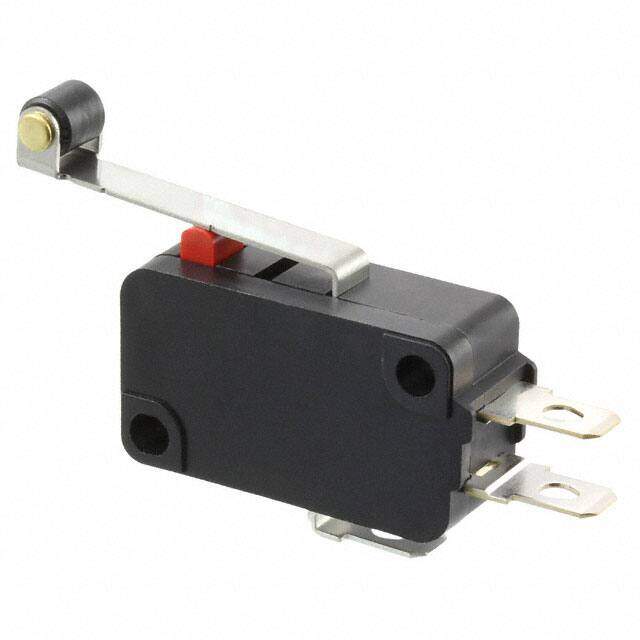

VX-016-1A3
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches MINIATURE BASIC SWITCH
PDF
/
Buying Options
Total Price: USD $4.95
Unit Price: USD $4.9456
≥1 USD $4.9456
≥10 USD $3.95912
≥100 USD $3.76112
≥500 USD $3.662208
≥1000 USD $3.485152
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Body Height 15.9mm
Technical
Pre-Travel-Max 4 mm
Actuator Travel 5.6 mm
Operating Position 0.815 (20.7mm)
Pretravel 0.157 (4.0mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.062 (1.6mm)
Contact (DC) Max Rating R Load .1A@30VDC
Contact Current(AC)-Max 0.1A
Operating Force 30gf
Contact Current Rating 100mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 10,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 1,000,000 Cycles
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 0.1A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Body Breadth 10.3 mm
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Current Rating 100mA
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
Number of Positions 2
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series VX
Published 2004
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount, Screw, Solder
Contact Material Gold
Supply Chain
Factory Lead Time 8 Weeks
