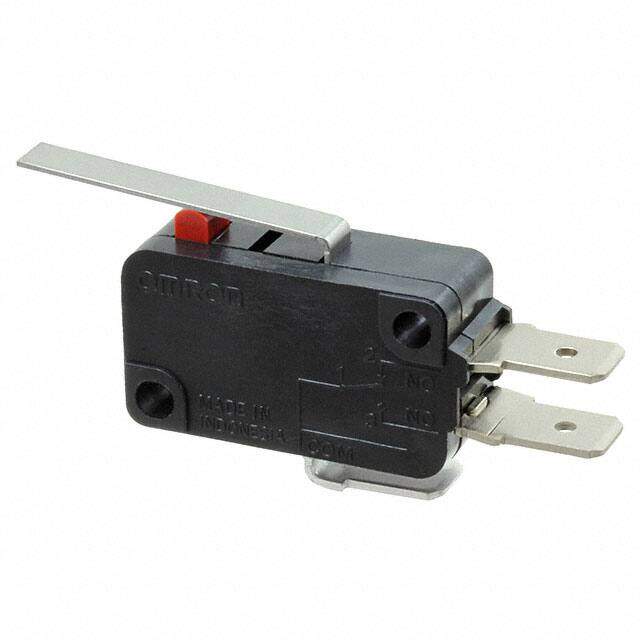

V1621C26
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 16A 250V
PDF
/
Buying Options
Total Price: USD $4.73
Unit Price: USD $4.7344
≥1 USD $4.7344
≥10 USD $3.78752
≥100 USD $3.03028
≥500 USD $2.604175
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Release Force 25gf
Operating Position 0.600 (15.2mm)
Pretravel 0.157 (4.0mm)
Differential Travel 0.060 (1.5mm)
Overtravel 0.062 (1.6mm)
Operating Force 250gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 50,000,000 Cycles
Electrical Life 100,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 250V
Termination Style Quick Connect - 0.187 (4.7mm)
Ingress Protection IP40
Current Rating (Amps) 16A AC 600mA DC
Voltage - Rated DC 125V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series V
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
