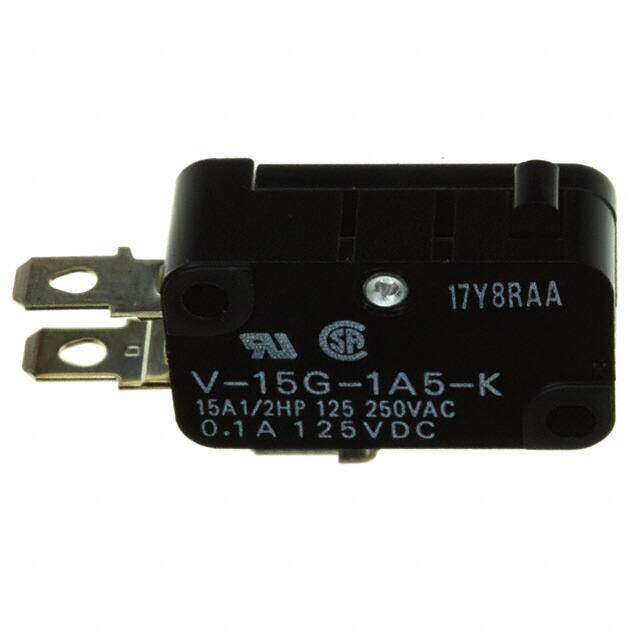

V15G1A5K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 250V
PDF
/
Buying Options
Total Price: USD $6.76
Unit Price: USD $6.76406
≥1 USD $6.76406
≥10 USD $5.4944
≥100 USD $4.24
Inventory: 221
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Mounting Feature PANEL MOUNT
Technical
Operating Temperature -25°C~80°C
Packaging Tray
Published 2002
Series V
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8536.50.90.40
Voltage - Rated DC 125V
Current Rating (Amps) 15A AC 100mA DC
Ingress Protection IP40
Reach Compliance Code unknown
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Body Length or Diameter 27.8mm
Body Breadth 10.3 mm
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 15A
Contact Voltage(DC)-Max 8V
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 200gf
Contact Current(AC)-Max 15A
Overtravel 0.040 (1.0mm)
Differential Travel 0.016 (0.4mm)
Pretravel 0.047 (1.2mm)
Operating Position 0.579 (14.7mm)
Release Force 50gf
Actuator Travel 2.5 mm
Pre-Travel-Max 1.2 mm
Dimensions
Body Height 15.9mm
