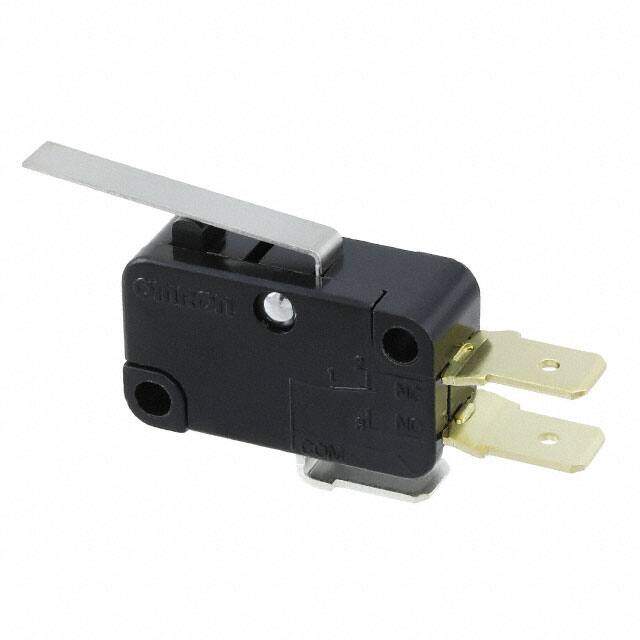

V-152-1C6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 250V
PDF
/
Buying Options
Total Price: USD $6.16
Unit Price: USD $6.164066
≥1 USD $6.164066
≥200 USD $2.460375
≥500 USD $2.377662
≥1000 USD $2.336962
Inventory: 978
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2004
Series V
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 15A AC 600mA DC
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 10A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 250V
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Electrical Life 100,000 Cycles
Mechanical Life 50,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 250gf
Overtravel 0.062 (1.6mm)
Differential Travel 0.060 (1.5mm)
Pretravel 0.157 (4.0mm)
Operating Position 0.600 (15.2mm)
Release Force 25gf
Compliance
RoHS Status RoHS Compliant
