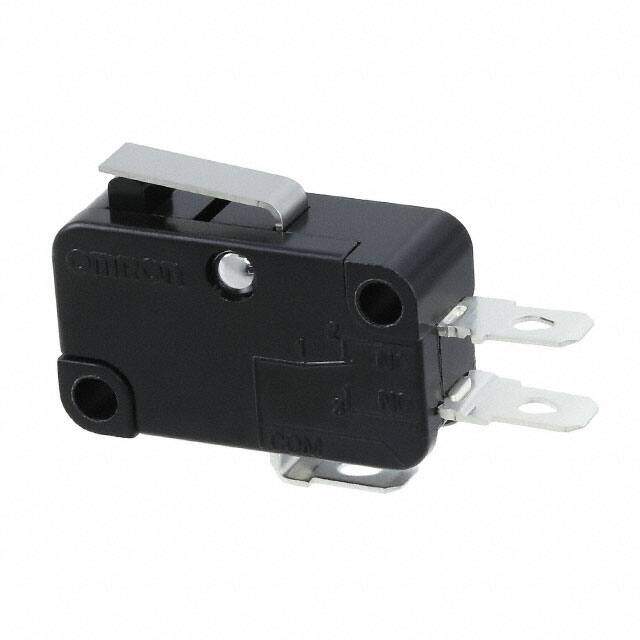

V-151-4A5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 250V
PDF
/
Inventory: 6160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP40
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Release Force 50gf
Operating Position 0.600 (15.2mm)
Pretravel 0.063 (1.6mm)
Differential Travel 0.025 (0.6mm)
Overtravel 0.030 (0.76mm)
Operating Force 200gf
Mechanical Life 50,000,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration SPDT
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 250V
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 250V
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Ingress Protection IP40
Current Rating (Amps) 15A AC 600mA DC
Voltage - Rated DC 30V
Min Operating Temperature -25°C
Max Operating Temperature 80°C
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series V
Published 2004
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Contact Material Silver
Supply Chain
Factory Lead Time 18 Weeks
