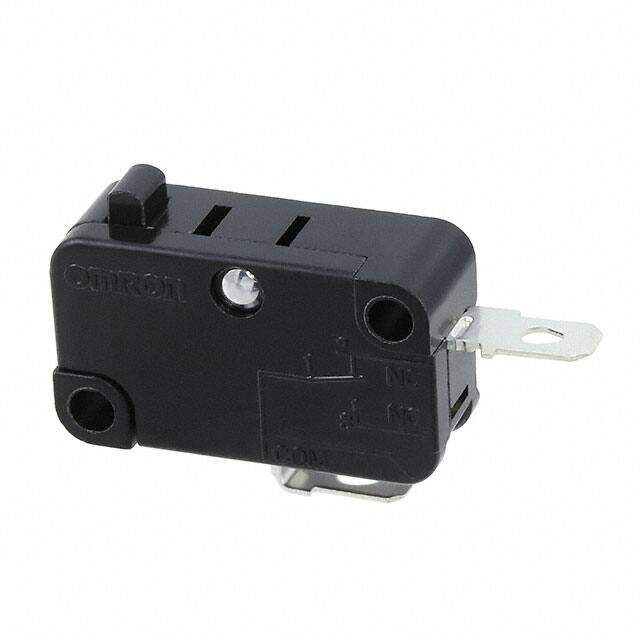

V-15-2A6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPST-NC 15A 250V
PDF
/
Buying Options
Total Price: USD $4.11
Unit Price: USD $4.1096
≥1 USD $4.1096
≥10 USD $3.62824
≥100 USD $2.741024
≥500 USD $2.257323
Inventory: 107
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2004
Series V
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 15A AC 600mA DC
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 10A
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Actuator Type Round (Pin Plunger)
Circuit SPST-NC
Switch Function On-Mom
Electrical Life 100,000 Cycles
Throw Configuration SPST
Mechanical Life 50,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 400gf
Overtravel 0.040 (1.0mm)
Differential Travel 0.016 (0.4mm)
Pretravel 0.047 (1.2mm)
Operating Position 0.579 (14.7mm)
Release Force 80gf
Compliance
RoHS Status RoHS Compliant
