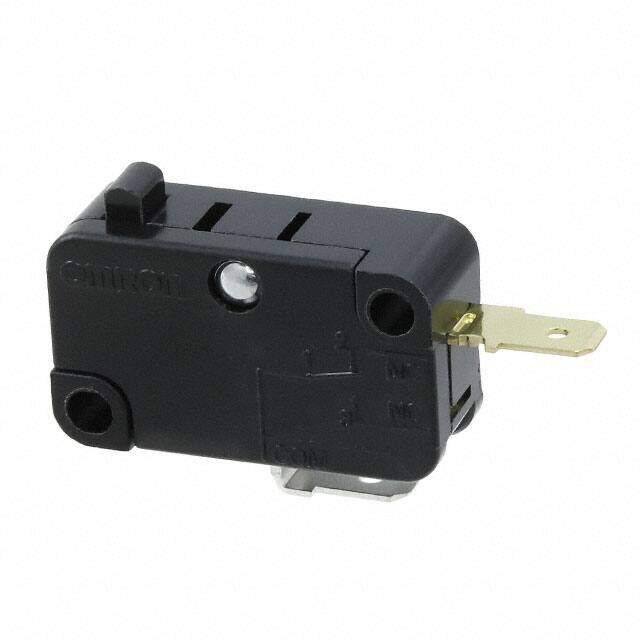

V-10-2C24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPST-NC 10A 250V
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.696
≥1 USD $3.696
≥10 USD $3.25952
≥100 USD $2.463032
≥500 USD $2.028365
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Release Force 20gf
Operating Position 0.579 (14.7mm)
Pretravel 0.047 (1.2mm)
Differential Travel 0.016 (0.4mm)
Overtravel 0.040 (1.0mm)
Operating Force 100gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 50,000,000 Cycles
Throw Configuration SPST
Electrical Life 300,000 Cycles
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 250V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 6A
Reach Compliance Code unknown
Ingress Protection IP40
Current Rating (Amps) 10A AC 600mA DC
Voltage - Rated DC 30V
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series V
Published 2004
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
