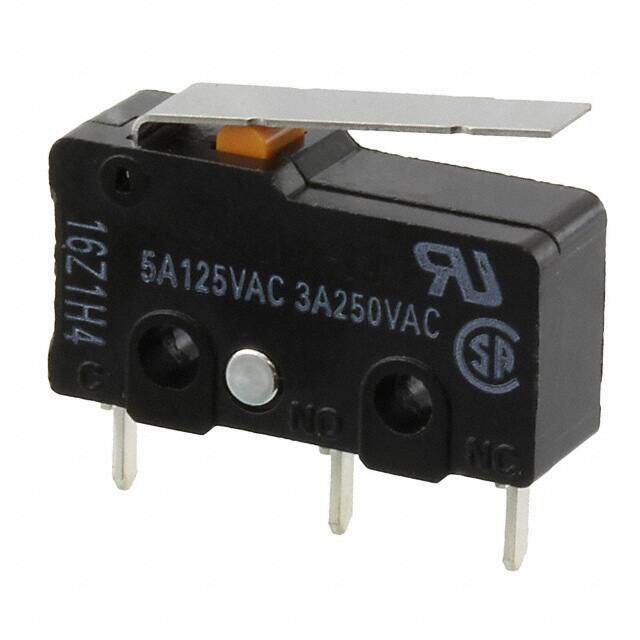

SS-5GLD1 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description Basic / Snap Action Switches Subminiature Basic Switch
PDF
/
Buying Options
Total Price: USD $3.79
Unit Price: USD $3.7928
≥1 USD $3.7928
≥10 USD $3.34576
≥100 USD $3.122944
≥500 USD $2.97418
≥1000 USD $2.528134
≥3000 USD $2.305072
Inventory: 469
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Silver
Mount Screw, Through Hole
Mounting Type Through Hole, Right Angle
Actuator Material Stainless Steel

Technical

Operating Temperature -25°C~85°C
Packaging Tray
Published 2004
Series SS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
ECCN Code EAR99
Number of Positions 2
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC
Orientation Right Angle
Ingress Protection IP40
Depth 18.7mm
Current Rating 4A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Breadth 6.4 mm
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 5A
Max Voltage Rating (AC) 125V
Max Current Rating 5A
Electrical Life 200,000 Cycles
Max Voltage Rating (DC) 14V
Mechanical Life 30,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 50gf
Contact Current(AC)-Max 5A
Contact (DC) Max Rating R Load 5A@14VDC
Overtravel 0.047 (1.2mm)
Differential Travel 0.031 (0.8mm)
Operating Position 0.345 (8.8mm)
Release Force 6.118gf

Dimensions

Length 19.8mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
