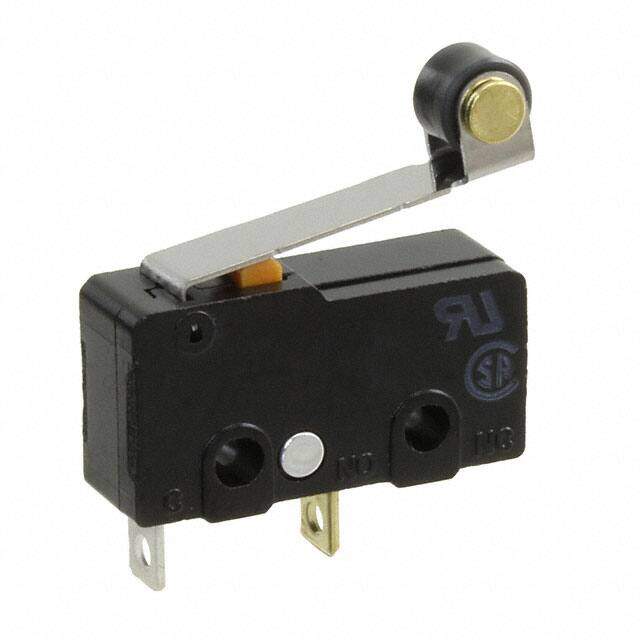

SS-5GL2-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Switch Snap Action N.O. SPST Hinge Roller Lever Solder 5A 125VAC 14VDC 0.49N Screw Mount
PDF
/
Buying Options
Total Price: USD $4.05
Unit Price: USD $4.048
≥1 USD $4.048
≥10 USD $3.57192
≥100 USD $2.301851
≥500 USD $2.222484
Inventory: 487
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Release Force 6.118gf
Operating Position 0.571 (14.5mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.047 (1.2mm)
Operating Force 50gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 30,000,000 Cycles
Max Voltage Rating (DC) 14V
Throw Configuration SPST
Electrical Life 200,000 Cycles
Max Voltage Rating (AC) 125V
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Lever, Roller
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 4A
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SS
Published 2004
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Screw, Solder
Contact Material Silver
Supply Chain
Factory Lead Time 15 Weeks
