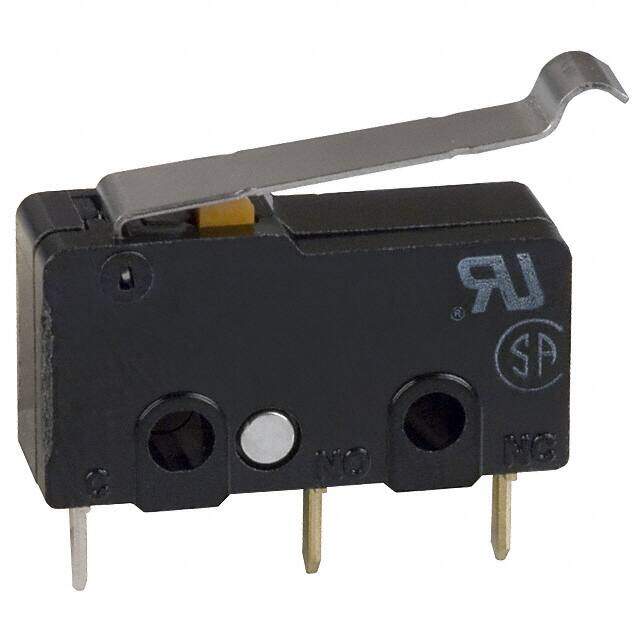

SS-5GL13D2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Subminiature Basic Switch
PDF
/
Inventory: 8450
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Max Voltage Rating (AC) 125V
Electrical Life 200,000 Cycles
Max Voltage Rating (DC) 14V
Mechanical Life 30,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 50gf
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@125VAC
Contact (DC) Max Rating R Load 5A@14VDC
Overtravel 0.047 (1.2mm)
Differential Travel 0.031 (0.8mm)
Operating Position 0.420 (10.7mm)
Release Force 6.118gf
Actuator Travel 2 mm
Pre-Travel-Max 1.2 mm
Contact Current(DC)-Max 5A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Body Breadth 6.4 mm
Body Length or Diameter 19.8mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 4A
Ingress Protection IP40
Orientation Right Angle
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series SS
Published 2004
Packaging Tray
Operating Temperature -25°C~85°C
Dimensions
Body Height 10.2mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Mounting Type Through Hole, Right Angle
Mount Screw, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 18 Weeks
Alternative Model
