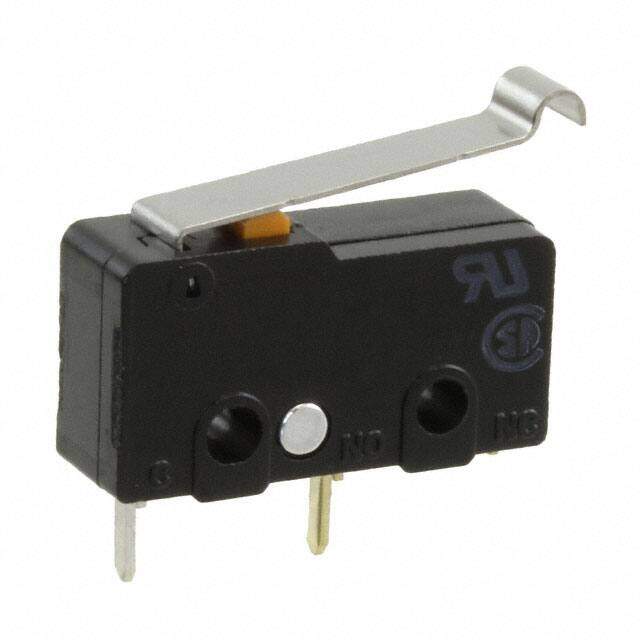

SS-5GL13-3D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPST-NO 5A 125V
PDF
/
Inventory: 1981
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2004
Series SS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC
Ingress Protection IP40
Current Rating 4A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Lever, Simulated Roller
Circuit SPST-NO
Switch Function Off-Mom
Electrical Life 200,000 Cycles
Throw Configuration SPST
Mechanical Life 30,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 50gf
Overtravel 0.047 (1.2mm)
Differential Travel 0.031 (0.8mm)
Operating Position 0.420 (10.7mm)
Release Force 6.118gf
Compliance
RoHS Status RoHS Compliant
