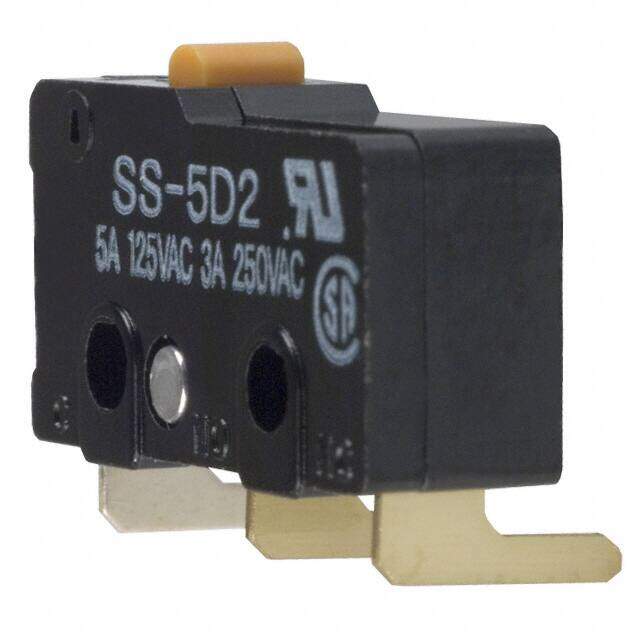

SS-5GL111-FD2 image
Favorite
SS-5GL111-FD2 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $6.4
Unit Price: USD $6.400388
≥1 USD $6.400388
≥200 USD $2.554903
≥500 USD $2.469565
≥1000 USD $2.426239
Inventory: 8656
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP40
RoHS Status RoHS Compliant

Technical

Release Force 2.039gf
Operating Position 0.345 (8.8mm)
Differential Travel 0.047 (1.2mm)
Overtravel 0.047 (1.2mm)
Operating Force 12gf
Mechanical Life 30,000,000 Cycles
Throw Configuration SPDT
Electrical Life 200,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 4A
Ingress Protection IP40
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SS
Published 2004
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Mounting Type Through Hole, Right Angle
Mount Through Hole

Supply Chain

Factory Lead Time 18 Weeks
