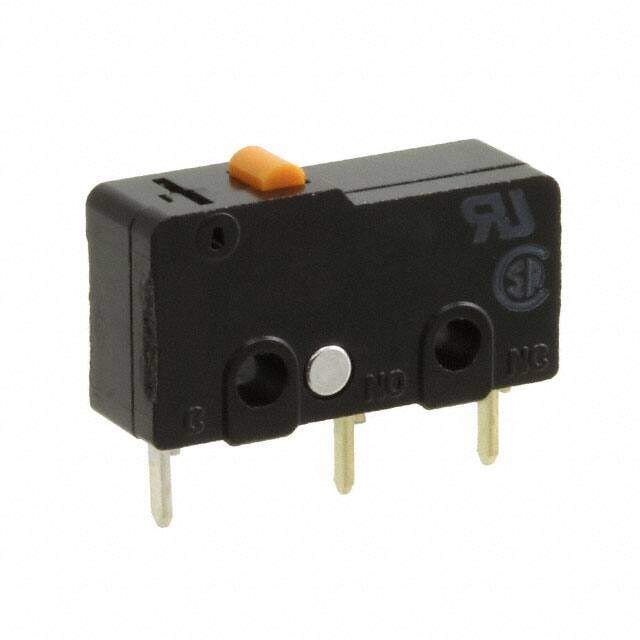

SS-5-FD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Subminiature Basic Switch
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $2.08296
≥100 USD $1.344992
≥500 USD $1.258215
≥1000 USD $1.171447
Inventory: 338
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Body Height 10.2mm
Length 19.8mm
Technical
Pre-Travel-Max 0.5 mm
Actuator Travel 1 mm
Release Force 4.079gf
Operating Position 0.330 (8.4mm)
Pretravel 0.020 (0.5mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.020 (0.5mm)
Contact (DC) Max Rating R Load 5A@14VDC
Contact (AC) Max Rating R Load 5A@125VAC
Contact Current(AC)-Max 5A
Operating Force 50gf
Contact Current Rating 5A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 30,000,000 Cycles
Max Voltage Rating (DC) 14V
Electrical Life 200,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 5A
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 4A
Depth 6.4mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series SS
Published 2003
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Weight 1.6g
Mounting Type Through Hole
Mount Panel, Screw, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
