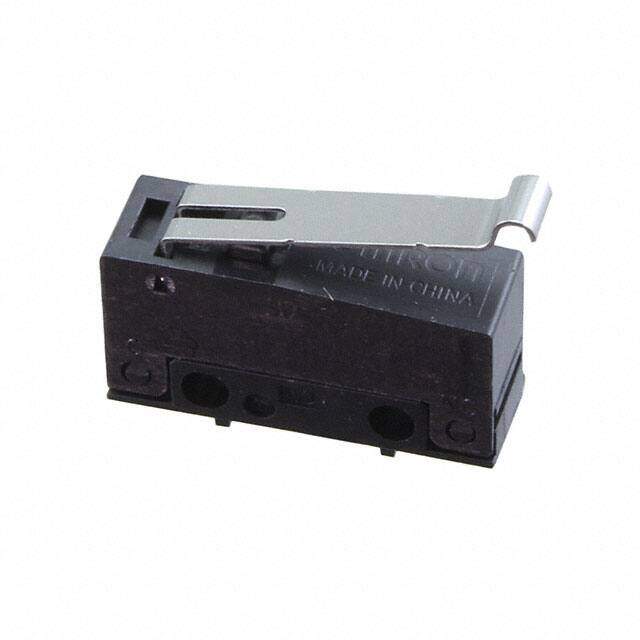

SS-01GL13D2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever PC Pins 0.1A 125VAC 30VDC 0.49N Thru-Hole
PDF
/
Inventory: 5432
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP40
RoHS Status RoHS Compliant
Technical
Release Force 6.118gf
Operating Position 0.420 (10.7mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.047 (1.2mm)
Operating Force 50gf
Mechanical Life 30,000,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration SPDT
Electrical Life 200,000 Cycles
Max Voltage Rating (AC) 125V
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 100mA
Ingress Protection IP40
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 30V
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SS
Published 2004
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Mounting Type Through Hole, Right Angle
Mount Screw, Through Hole
Contact Material Gold
Supply Chain
Factory Lead Time 18 Weeks
