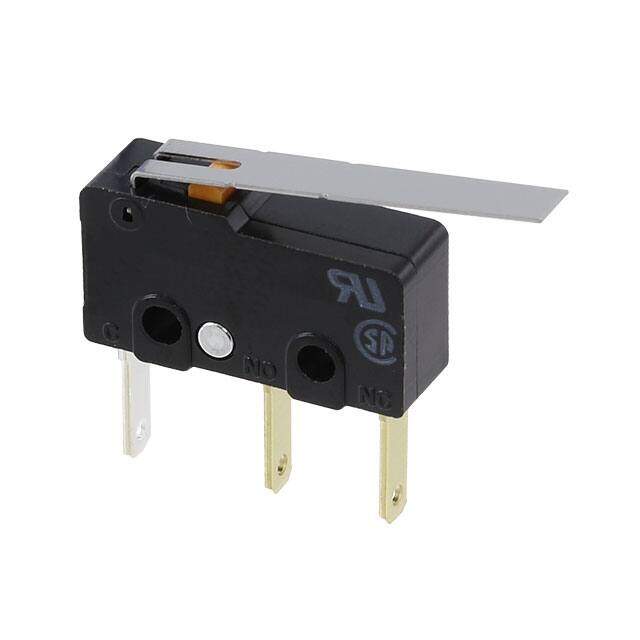

SS-01GL111-FT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.9952
≥1 USD $3.9952
≥10 USD $3.52352
≥100 USD $2.270928
≥500 USD $2.192617
Inventory: 596
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2004
Series SS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 100mA
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 12gf
Overtravel 0.047 (1.2mm)
Differential Travel 0.047 (1.2mm)
Operating Position 0.345 (8.8mm)
Release Force 2.039gf
Compliance
RoHS Status RoHS Compliant
