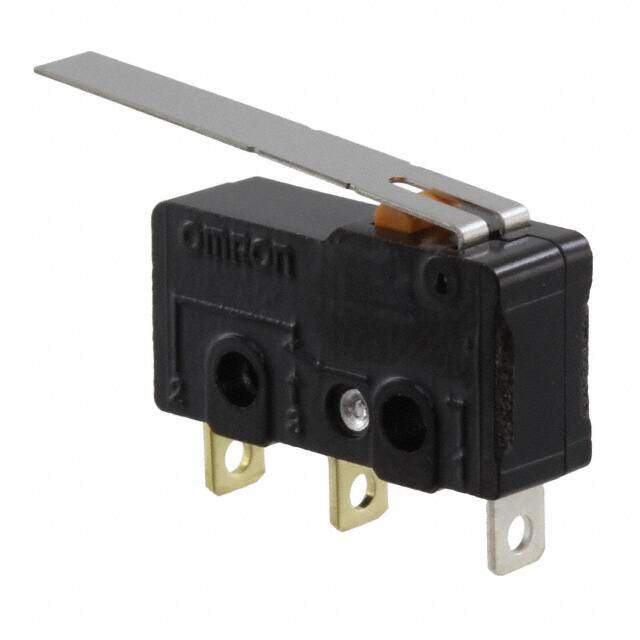

SS-01GL111-E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0744
≥1 USD $4.0744
≥10 USD $3.59392
≥100 USD $2.31616
≥500 USD $2.236291
Inventory: 701
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2004
Series SS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 100mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 6.118gf
Overtravel 0.047 (1.2mm)
Differential Travel 0.047 (1.2mm)
Operating Position 0.345 (8.8mm)
Release Force 0.306gf
Compliance
RoHS Status RoHS Compliant
