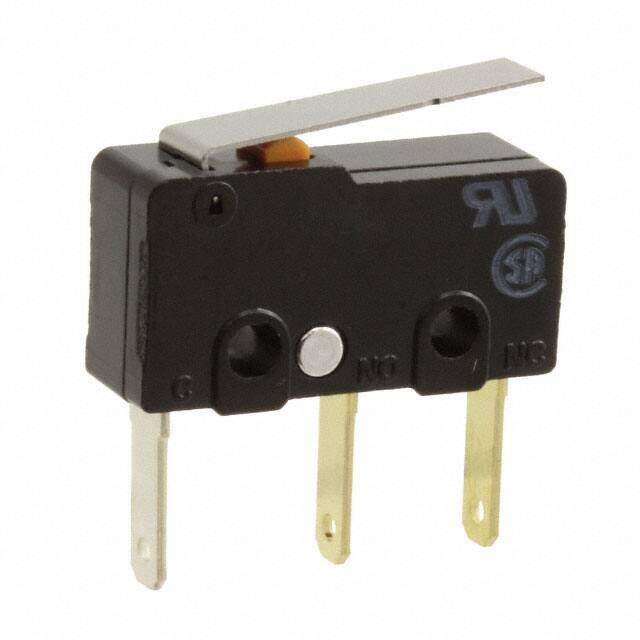

SS-01GL-FT
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Subminiature Basic Switch
PDF
/
Buying Options
Total Price: USD $4.05
Unit Price: USD $4.048
≥1 USD $4.048
≥10 USD $3.5728
≥100 USD $2.302502
≥500 USD $2.2231
Inventory: 485
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Body Height 10.2mm
Technical
Pre-Travel-Max 1.2 mm
Actuator Travel 2 mm
Release Force 2.039gf
Operating Position 0.345 (8.8mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.047 (1.2mm)
Contact (DC) Max Rating R Load .1A@30VDC
Contact (AC) Max Rating R Load .1A@125VAC
Contact Current(AC)-Max 0.1A
Operating Force 16gf
Contact Current Rating 100mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 30,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 200,000 Cycles
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 0.1A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Body Breadth 6.4 mm
Body Length or Diameter 19.8mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 100mA
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series SS
Published 2003
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Contact Material Gold
Supply Chain
Factory Lead Time 15 Weeks
