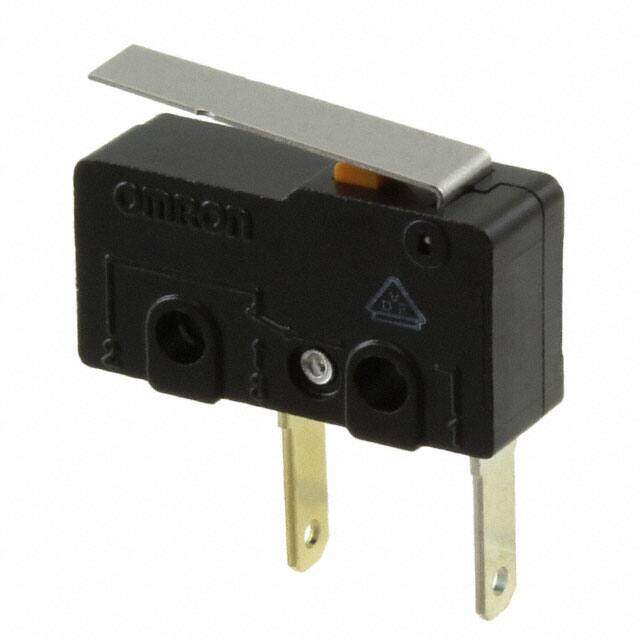

SS-01GL-E-3T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP SPST-NO 100MA 125V
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.57432
≥100 USD $1.475584
≥500 USD $1.442672
≥1000 USD $1.15456
Inventory: 402
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Release Force 1.020gf
Operating Position 0.345 (8.8mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.047 (1.2mm)
Operating Force 8.158gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 30,000,000 Cycles
Throw Configuration SPST
Electrical Life 200,000 Cycles
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 100mA
Reach Compliance Code unknown
Ingress Protection IP40
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 30V
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SS
Published 2004
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
