RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Snap Action, Limit Switches
Description

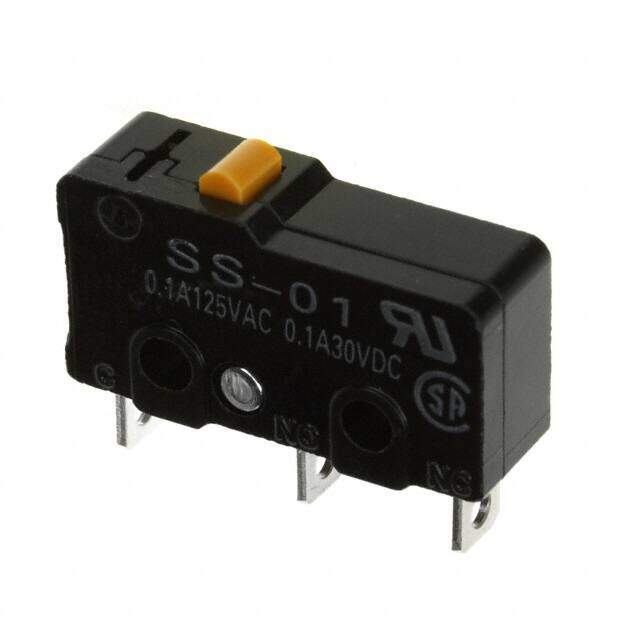

SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.4288
≥1 USD $2.4288
≥10 USD $2.14016
≥100 USD $1.9976
≥500 USD $1.90256
≥1000 USD $1.67486
Inventory: 15230
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Gold
Mount Chassis Mount, Screw, Solder
Mounting Type Chassis Mount
Package / Case 100
Weight 1.6g
Technical
Operating Temperature -25°C~85°C
Packaging Tray
Published 2004
Series SS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 2
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Orientation Straight
Ingress Protection IP40
Depth 6.4mm
Current Rating 100mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 125V
Max Current Rating 100mA
Electrical Life 200,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 30V
Mechanical Life 30,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 100mA
Operating Force 150gf
Overtravel 0.020 (0.5mm)
Differential Travel 0.004 (0.1mm)
Pretravel 0.020 (0.5mm)
Operating Position 0.330 (8.4mm)
Release Force 25gf
Pre-Travel-Max 0.5 mm
Dimensions
Length 19.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
