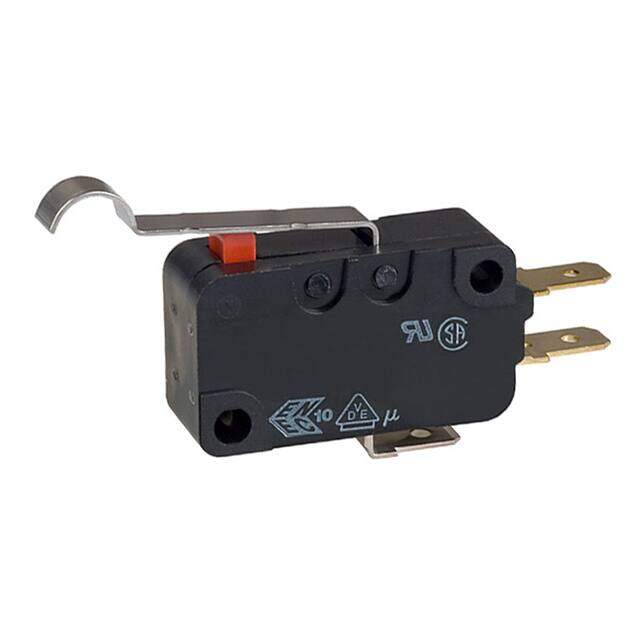

D3V-64M-2A4
RoHS
/
Package /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPST-NC 6A 250V
PDF
/
Inventory: 7739
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2002
Series D3V
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC/DC
Ingress Protection IP40
Current Rating 6A
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 250V
Body Length or Diameter 27.8mm
Body Breadth 10.3 mm
Actuator Type Lever, Simulated Roller
Circuit SPST-NC
Switch Function On-Mom
Contact Current(DC)-Max 6A
Sealing IP00
Contact Voltage(DC)-Max 8V
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 10,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 60gf
Contact Current(AC)-Max 6A
Contact (AC) Max Rating R Load 6A@250VAC
Contact (DC) Max Rating R Load 6A@8VDC
Overtravel 0.062 (1.6mm)
Differential Travel 0.060 (1.5mm)
Pretravel 0.157 (4.0mm)
Operating Position 0.738 (18.7mm)
Release Force 6.118gf
Actuator Travel 5.6 mm
Pre-Travel-Max 4 mm
Dimensions
Body Height 15.9mm
Compliance
RoHS Status RoHS Compliant
