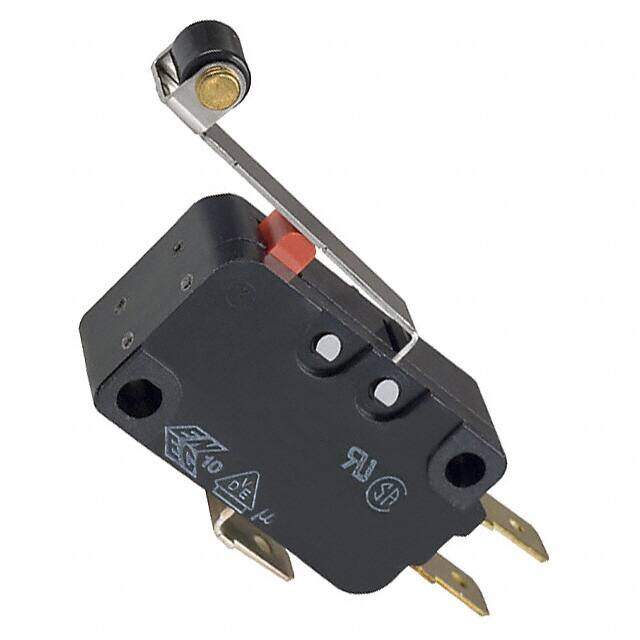

D3V-01-3A2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP SPST-NO 100MA 125V
PDF
/
Buying Options
Total Price: USD $2.32
Unit Price: USD $2.3232
≥1 USD $2.3232
≥10 USD $2.1472
≥100 USD $1.565784
≥500 USD $1.297393
≥1000 USD $1.207923
Inventory: 149
Minimum: 1
-
+
Technical Details
Technical
Series D3V
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Ingress Protection IP40
Current Rating 100mA
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Body Length or Diameter 27.8mm
Body Breadth 10.3 mm
Actuator Type Round (Pin Plunger)
Circuit SPST-NO
Switch Function Off-Mom
Contact Current(DC)-Max 0.1A
Sealing IP00
Contact Voltage(DC)-Max 8V
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 10,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 25gf
Contact Current(AC)-Max 0.1A
Contact (AC) Max Rating R Load .1A@125VAC
Contact (DC) Max Rating R Load .1A@8VDC
Overtravel 0.040 (1.0mm)
Differential Travel 0.016 (0.4mm)
Pretravel 0.047 (1.2mm)
Published 2002
Packaging Bulk
Operating Temperature -25°C~85°C
Operating Position 0.579 (14.7mm)
Release Force 3.059gf
Actuator Travel 2.2 mm
Pre-Travel-Max 1.2 mm
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
Dimensions
Body Height 15.9mm
Compliance
RoHS Status RoHS Compliant
