RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Snap Action, Limit Switches
Description

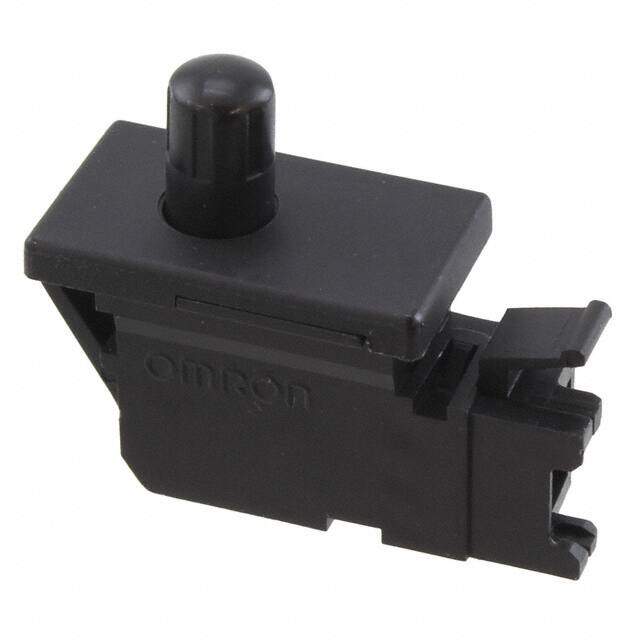

Basic / Snap Action Switches 7mm 30VDC SPST-NC 0.1A Resistive Load
PDF
/
Buying Options
Total Price: USD $2.84
Unit Price: USD $2.841422
≥1 USD $2.841422
≥10 USD $2.680583
≥100 USD $2.528853
≥500 USD $2.38572
≥1000 USD $2.25068
Inventory: 800
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Body Height 12.1mm
Technical
Actuator Travel 7 mm
Operating Position 0.264 (6.7mm)
Contact (DC) Max Rating R Load .1A@30VDC
Operating Force 102gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Contact Current(DC)-Max 0.1A
Contact Resistance 300mOhm
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round (Pin Plunger)
Body Breadth 8.5 mm
Body Length or Diameter 19mm
Termination Style Connector
Current Rating 100mA
Ingress Protection IP00
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Black Actuator
Series D3DC
Published 2002
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Weight 2g
Package / Case SMD/SMT
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 15 Weeks
