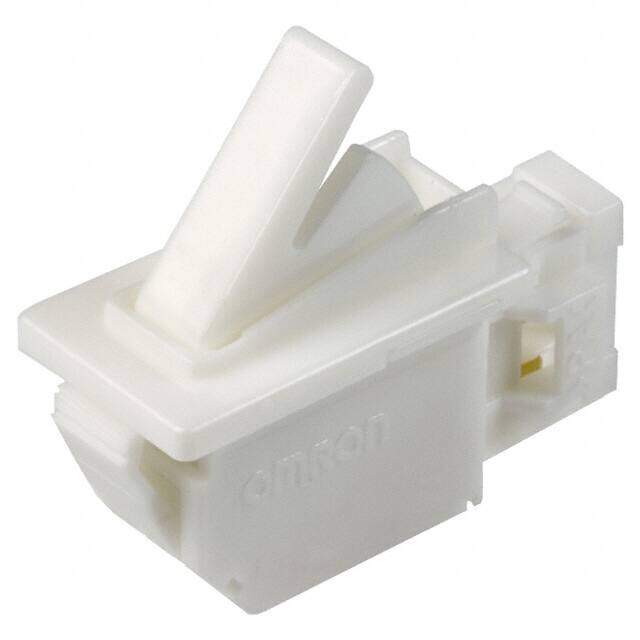

D3D-221
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECTOR SPST-NC 1A 125V
PDF
/
Buying Options
Total Price: USD $2.43
Unit Price: USD $2.4288
≥1 USD $2.4288
≥10 USD $2.28888
≥100 USD $2.081024
≥500 USD $1.803472
≥1000 USD $1.635014
≥3000 USD $1.516117
Inventory: 1615
Minimum: 1
-
+
Technical Details
Technical
Current Rating 1A
Termination Style Connector
Voltage - Rated AC 125V
Approval Agency CSA, UL, cURus
Ingress Protection IP00
Current Rating (Amps) 1A AC
HTS Code 8536.50.70.00
Color White
Terminal Finish Silver (Ag)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature White Actuator
JESD-609 Code e4
Series D3D
Published 2002
Packaging Tray
Operating Temperature -30°C~60°C
Actuator Travel 9.7 mm
Operating Position 0.512 (13.0mm)
Contact Current(AC)-Max 1A
Operating Force 204gf
Contact Current Rating 500mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 300,000 Cycles
Throw Configuration SPST
Number of Poles 1
Electrical Life 50,000 Cycles
Max Current Rating 1A
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Angled Toggle (Detector)
Physical
Package / Case 125
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Gold
Supply Chain
Factory Lead Time 13 Weeks
Compliance
Ratings IP00, IP40
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 15mm
Length 25mm
Height 15mm
