D2SW-P01L2M
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Snap Action, Limit Switches
Description

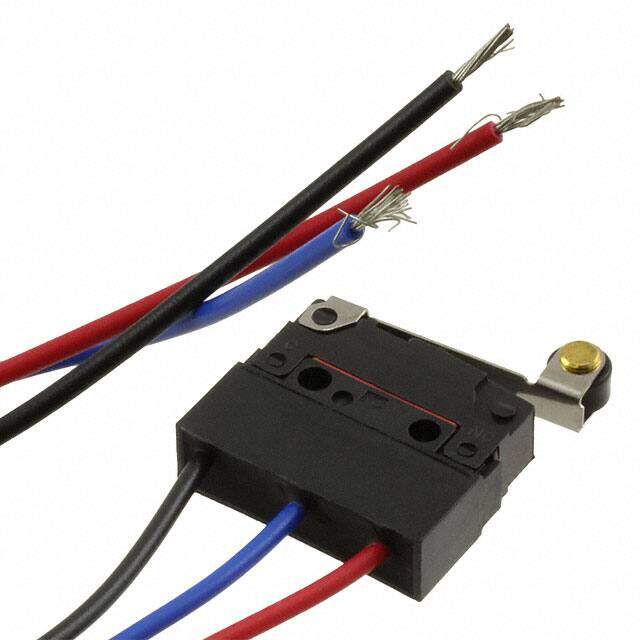

OMRON ELECTRONIC COMPONENTS D2SW-P01L2MMicroswitch, SPDT, Roller Lever, 100 mA
PDF
/
Buying Options
Total Price: USD $10.66
Unit Price: USD $10.6568
≥1 USD $10.6568
≥10 USD $8.26672
≥100 USD $6.743704
≥500 USD $5.873534
Inventory: 809
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Gold
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case 100
Actuator Material Polyacetal, Resin, Stainless Steel
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2004
Series D2SW-P
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 6.4mm
Current Rating 100mA
Termination Style Wire Leads
Voltage - Rated AC 125V
Actuator Type Lever, Roller
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 0.1A
Max Voltage Rating (AC) 125V
Max Current Rating 100mA
Electrical Life 200,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 100mA
Operating Force 61gf
Contact Current(AC)-Max 0.1A
Contact (AC) Max Rating R Load .1A@125VAC
Contact (DC) Max Rating R Load .1A@30VDC
Overtravel 0.030 (0.76mm)
Differential Travel 0.031 (0.8mm)
Operating Position 0.571 (14.5mm)
Release Force 5.099gf
Dimensions
Length 22.75mm
Body Height 11mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
