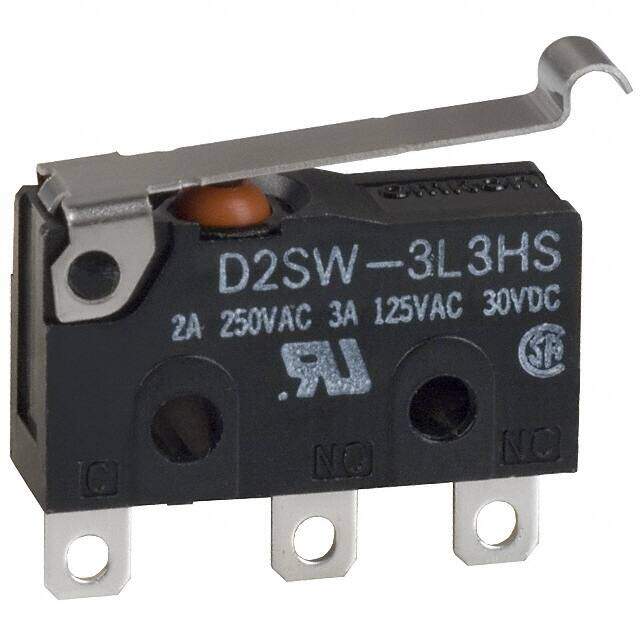

D2SW-3L3DS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches MINIATURE BASIC SWITCH
PDF
/
Buying Options
Total Price: USD $4.58
Unit Price: USD $4.58083
≥1 USD $4.58083
≥10 USD $4.32154
≥100 USD $4.07692
Inventory: 400
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Body Height 10.1mm
Technical
Actuator Travel 1 mm
Release Force 6.118gf
Operating Position 0.420 (10.7mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.040 (1.0mm)
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Operating Force 60gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 5,000,000 Cycles
Electrical Life 200,000 Cycles
Contact Current(DC)-Max 3A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Body Breadth 6.4 mm
Body Length or Diameter 19.8mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series D2SW
Published 2004
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 2g
Mounting Type Through Hole
Mount Panel, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
