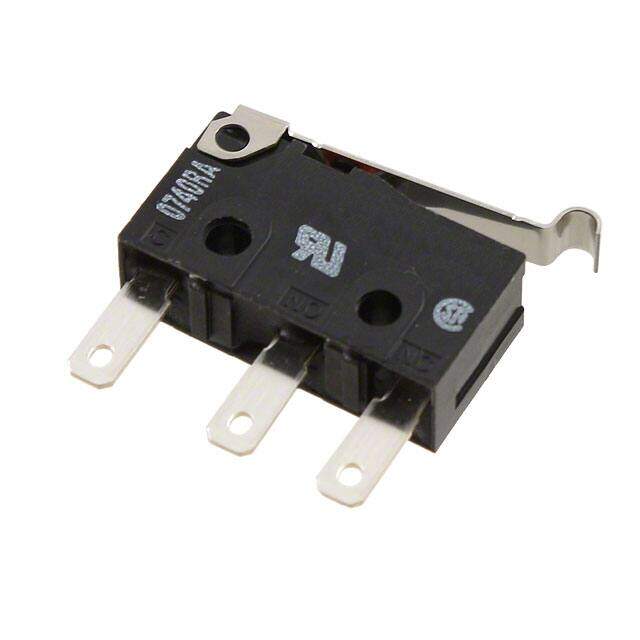

D2SW-01L3TS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Buying Options
Total Price: USD $3.74
Unit Price: USD $3.74
≥1 USD $3.74
≥10 USD $2.99464
≥100 USD $2.845216
≥500 USD $2.77024
≥1000 USD $2.63626
Inventory: 2181
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Body Height 10.1mm
Technical
Actuator Travel 1 mm
Release Force 6.118gf
Operating Position 0.420 (10.7mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.040 (1.0mm)
Contact (AC) Max Rating R Load .1A@125VAC
Contact Current(AC)-Max 0.1A
Operating Force 60gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 5,000,000 Cycles
Electrical Life 200,000 Cycles
Contact Current(DC)-Max 0.1A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Body Breadth 6.4 mm
Body Length or Diameter 19.8mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 100mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series D2SW
Published 2004
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 2g
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Contact Material Gold
Supply Chain
Factory Lead Time 16 Weeks
