RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description

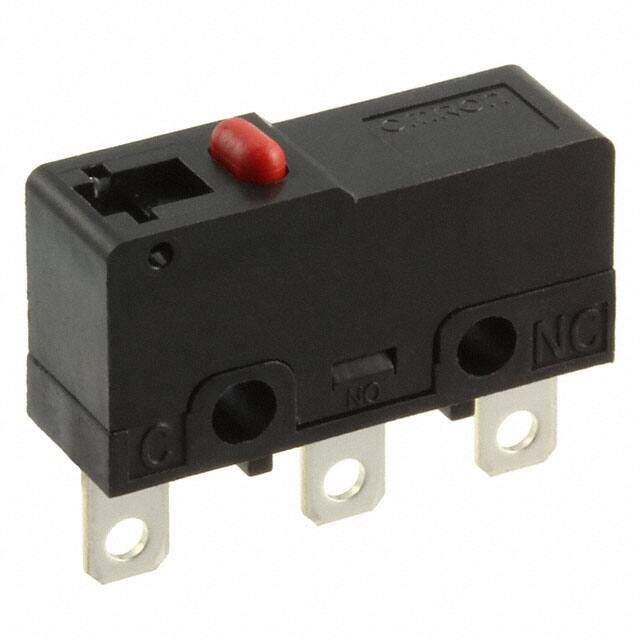

Switch Snap Action N.O./N.C. SPDT Pin Plunger PC Pins 5A 250VAC 250VDC 1.47N Thru-Hole
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.4552
≥1 USD $2.4552
≥10 USD $2.26248
≥100 USD $1.65
≥500 USD $1.367115
≥1000 USD $1.272832
Inventory: 564
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40
RoHS Status RoHS Compliant
Technical
Release Force 25gf
Operating Position 0.330 (8.4mm)
Pretravel 0.028 (0.7mm)
Differential Travel 0.004 (0.1mm)
Overtravel 0.015 (0.4mm)
Operating Force 150gf
Mechanical Life 30,000,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration SPDT
Electrical Life 200,000 Cycles
Max Voltage Rating (AC) 250V
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 5A
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 5A AC
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 2
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Sealed - Flux Protection
Series D2S
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Weight 1.6g
Mounting Type Through Hole
Mount Panel, Screw, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 17 Weeks
