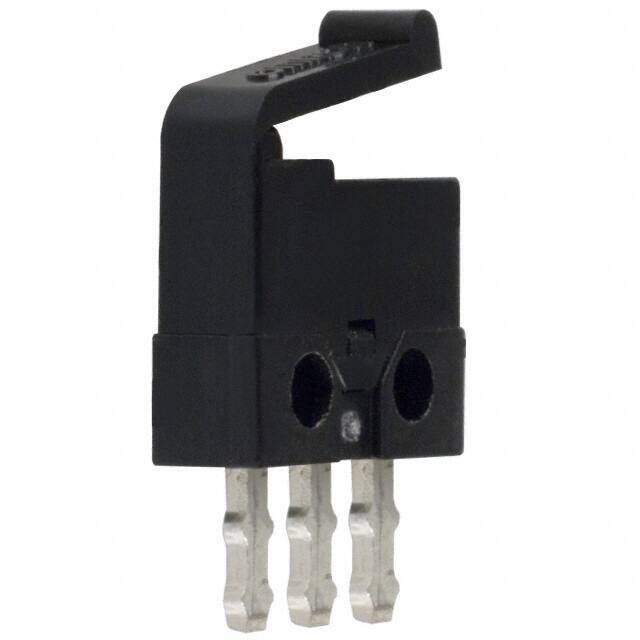

D2MQ-1L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
OMRON ELECTRONIC COMPONENTS D2MQ-1LMicroswitch, D2MQ Series, SPDT, Through Hole, 500 mA, 30 VDC
PDF
/
Buying Options
Total Price: USD $3.86
Unit Price: USD $3.8632
≥1 USD $3.8632
≥10 USD $3.40912
≥100 USD $3.18208
≥500 USD $3.030368
≥1000 USD $2.575848
≥3000 USD $2.348614
Inventory: 2303
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Silver
Mount Screw, Through Hole
Mounting Type Through Hole
Weight 299.994654mg
Actuator Material Plastic
Technical
Operating Temperature -15°C~70°C
Packaging Bulk
Published 2004
Series D2MQ
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 500mA DC
Orientation Straight
Ingress Protection IP40
Depth 2.7mm
Current Rating 500mA
Termination Style PC Pin
Actuator Type Lever, Leaf
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 0.5A
Max Current Rating 500mA
Electrical Life 10,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 30,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 500mA
Operating Force 60gf
Contact (DC) Max Rating R Load .5A@30VDC
Overtravel 0.011 (0.3mm)
Differential Travel 0.027 (0.7mm)
Pretravel 0.094 (2.4mm)
Operating Position 0.264 (6.7mm)
Release Force 8.158gf
Pre-Travel-Max 2.4 mm
Dimensions
Length 8.2mm
Body Height 6.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
