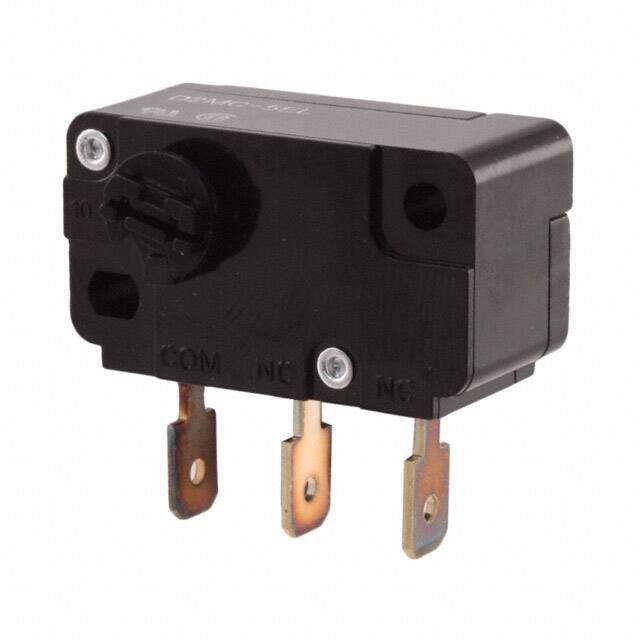

D2MC-5EL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $12.65
Unit Price: USD $12.6544
≥1 USD $12.6544
≥10 USD $9.81376
≥100 USD $9.297728
≥500 USD $8.781168
≥1000 USD $8.006328
≥3000 USD $7.48975
Inventory: 617
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Body Height 17.5mm
Length 31mm
Technical
Release Force 0.006gfm
Pretravel 21°
Differential Travel 3°
Overtravel 17°
Contact (AC) Max Rating R Load 5A@250VAC
Contact Current(AC)-Max 5A
Operating Force 0.051gfm
Contact Current Rating 5A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 10,000,000 Cycles
Electrical Life 100,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Contact Resistance 20mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Without
Body Breadth 14.1 mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.205 (5.2mm)
Current Rating 5A
Depth 18.2mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 5A AC
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series D2MC
Published 2004
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Weight 10g
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
