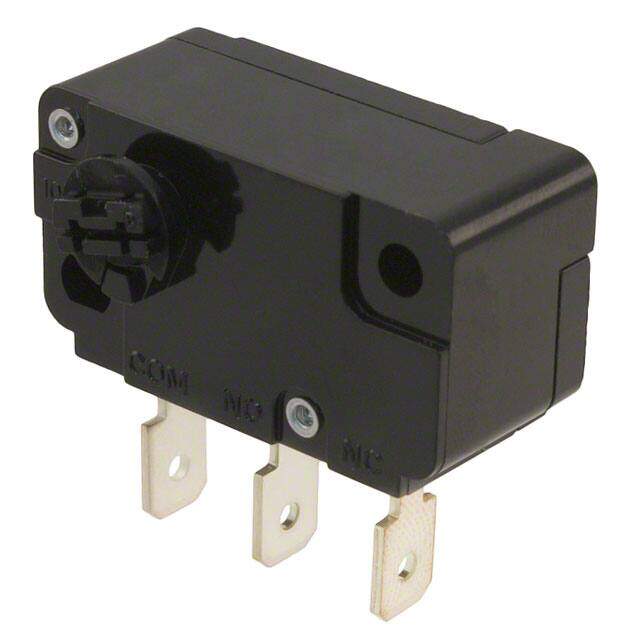

D2MC-5E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $12.72
Unit Price: USD $12.7248
≥1 USD $12.7248
≥10 USD $8.82816
≥100 USD $8.049096
≥500 USD $7.010538
Inventory: 201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Weight 10g
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2004
Series D2MC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
HTS Code 8536.50.70.00
Current Rating (Amps) 5A AC
Orientation Straight
Ingress Protection IP40
Depth 18.2mm
Current Rating 5A
Termination Style Quick Connect - 0.205 (5.2mm)
Voltage - Rated AC 125V
Body Breadth 14.1 mm
Actuator Type Without
Circuit SPDT
Switch Function On-Mom
Contact Resistance 20mOhm
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 0.051gfm
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Overtravel 17°
Differential Travel 3°
Pretravel 21°
Release Force 0.006gfm
Dimensions
Length 31mm
Body Height 17.5mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
