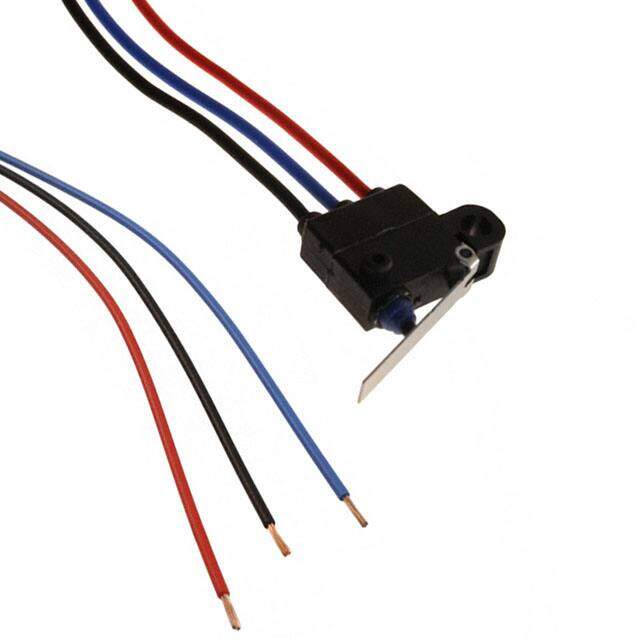

D2HW-C223MR
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Snap Action, Limit Switches
Description
OMRON ELECTRONIC COMPONENTS D2HW-C223MRMicroswitch, D2HW Series, SPST-NO, Long Lever, Wire Leaded, 2 A, 125 VAC
PDF
/
Buying Options
Total Price: USD $8.14
Unit Price: USD $8.144095
≥1 USD $8.144095
≥10 USD $7.683109
≥100 USD $7.248215
≥500 USD $6.837934
≥1000 USD $6.450886
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Release Force 3.059gf
Operating Position 0.366 (9.3mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.098 (2.5mm)
Operating Force 50gf
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 42V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 125V
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style Wire Leads
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 100mA AC 2A DC
Voltage - Rated DC 12V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination Wire Leads
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series D2HW
Published 2004
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 125
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw, Wire
Contact Plating Gold
Contact Material Gold
Supply Chain
Factory Lead Time 11 Weeks
