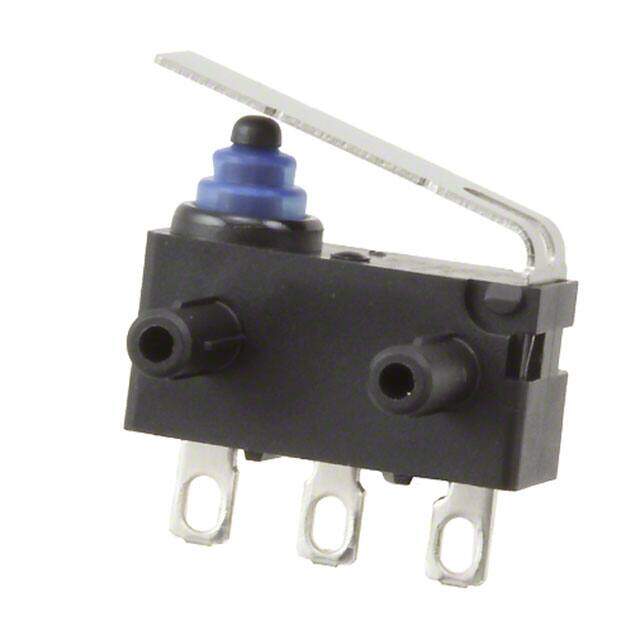

D2HW-BL261D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
MICROSWITCH, SEALED, LEAF LEVER, SPDT
PDF
/
Inventory: 9408
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Panel, Screw, Through Hole
Mounting Type Through Hole
Actuator Material Stainless Steel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2004
Series D2HW
Feature Support Posts
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
ECCN Code EAR99
Voltage - Rated DC 12V
Current Rating (Amps) 100mA AC 2A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 10.3mm
Current Rating 2A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Lever, Leaf
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 125V
Max Current Rating 2A
Electrical Life 100,000 Cycles
Max Voltage Rating (DC) 42V
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 2A
Operating Force 183gf
Overtravel 0.070 (1.8mm)
Differential Travel 0.020 (0.5mm)
Operating Position 0.291 (7.4mm)
Release Force 20gf
Dimensions
Length 13.3mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
