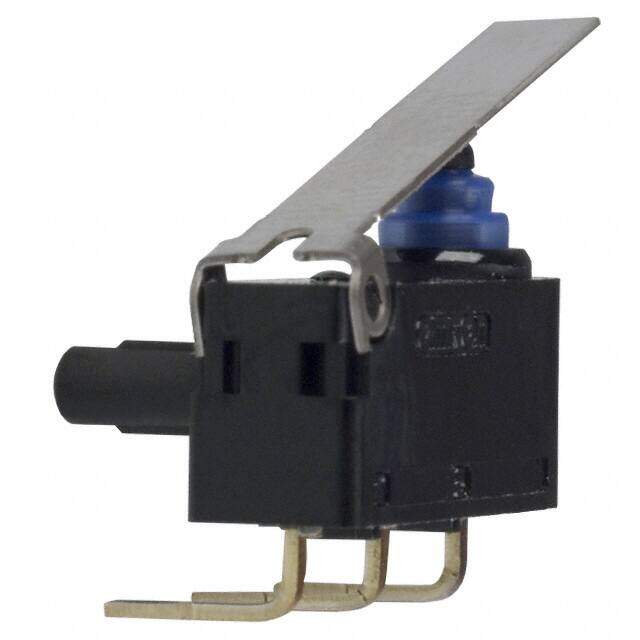

D2HW-BL221DL image
Favorite
D2HW-BL221DL image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Snap Action, Limit Switches
Description OMRON ELECTRONIC COMPONENTS D2HWBL221DLMicroswitch, SPDT, Solder, 2 mA, 125 VAC, 12 VDC
PDF
/
Buying Options
Total Price: USD $3.45
Unit Price: USD $3.4496
≥1 USD $3.4496
≥10 USD $3.18384
≥100 USD $2.98496
≥500 USD $2.91874
≥1000 USD $2.321774
≥3000 USD $2.189088
Inventory: 544
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP50, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Body Height 5.3mm

Technical

Release Force 3.059gf
Operating Position 0.366 (9.3mm)
Differential Travel 0.031 (0.8mm)
Overtravel 0.098 (2.5mm)
Operating Force 50gf
Contact Current Rating 2A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 42V
Number of Poles 1
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 2A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Body Breadth 6.5 mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Right Angle
Current Rating (Amps) 100mA AC 2A DC
Voltage - Rated DC 12V
HTS Code 8536.50.70.00
Number of Positions 2
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Support Posts
Series D2HW
Published 2004
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Mounting Type Through Hole, Right Angle
Mount PCB, Panel, Through Hole
Contact Plating Gold
Contact Material Gold, Silver

Supply Chain

Factory Lead Time 20 Weeks
