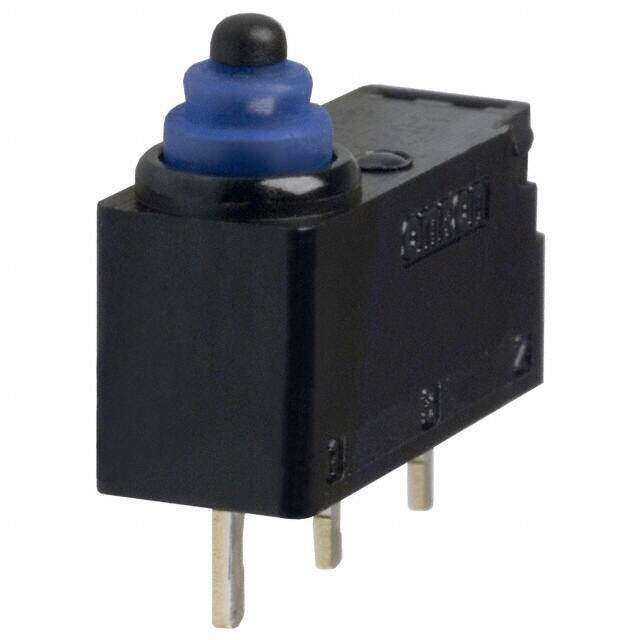

D2HW-A201D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
OMRON ELECTRONIC COMPONENTS D2HWA201DMicroswitch, D2HW Series, SPDT, Pin Plunger, Solder, 2 mA, 125 VAC
PDF
/
Buying Options
Total Price: USD $2.73
Unit Price: USD $2.728
≥1 USD $2.728
≥10 USD $2.51504
≥100 USD $2.357696
≥500 USD $2.30538
≥1000 USD $1.833814
≥3000 USD $1.729006
Inventory: 15451
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Gold
Mount PCB, Panel, Screw, Through Hole
Mounting Type Through Hole
Weight 700mg
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2004
Series D2HW
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
ECCN Code EAR99
Number of Positions 2
HTS Code 8536.50.70.00
Voltage - Rated DC 12V
Current Rating (Amps) 100mA AC 2A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 5.3mm
Current Rating 2A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Lead Length 2.5mm
Circuit SPDT
Switch Function On-Mom
Contact Resistance 100mOhm
Insulation Resistance 100MOhm
Contact Current(DC)-Max 2A
Max Voltage Rating (AC) 125V
Max Current Rating 2A
Electrical Life 100,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 42V
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 2A
Operating Force 76gf
Overtravel 0.055 (1.4mm)
Differential Travel 0.010 (0.25mm)
Operating Position 0.409 (10.4mm)
Release Force 10gf
Dimensions
Length 13.3mm
Body Height 6.5mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP50, IP67, Waterproof
