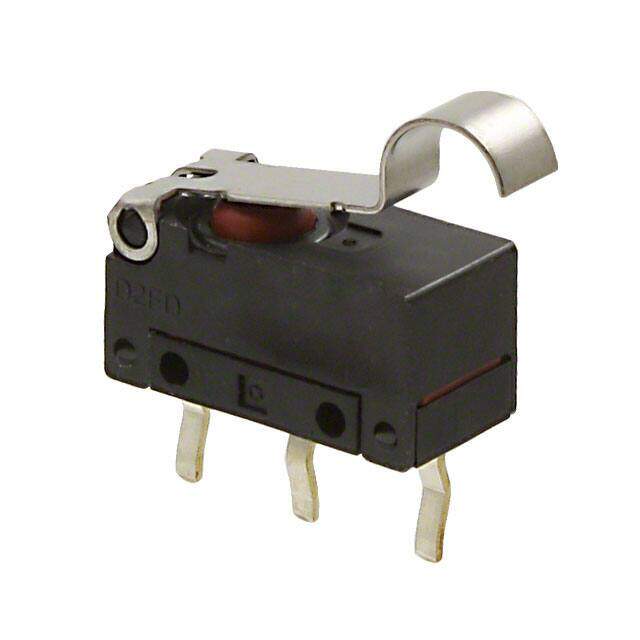

D2FD-01L30-1H image
Favorite
D2FD-01L30-1H image
Favorite
RoHS
RoHS RoHS compliant
Package 100
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.2416
≥1 USD $4.2416
≥10 USD $3.74616
≥100 USD $2.414236
≥500 USD $2.330988
Inventory: 723
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 21 Weeks

Physical

Contact Material Gold, Silver
Contact Plating Gold
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case 100

Technical

Operating Temperature -20°C~70°C
Packaging Bulk
Published 2004
Series D2FD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Straight
Voltage - Rated DC 30V
Current Rating (Amps) 100mA AC/DC
Ingress Protection IP60 - Dust Tight
Current Rating 100mA
Termination Style Solder Lug
Actuator Type Lever, Simulated Roller
Circuit SPDT
Switch Function On-Mom
Contact Resistance 100mOhm
Max Voltage Rating (AC) 125V
Electrical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 300,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 100mA
Operating Force 66gf
Overtravel 0.020 (0.5mm)
Differential Travel 0.020 (0.5mm)
Operating Position 0.445 (11.3mm)
Release Force 5.099gf

Compliance

Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
