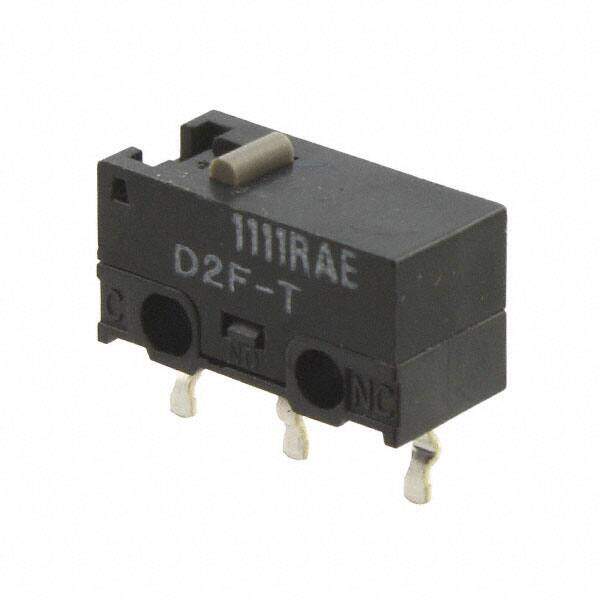

OMRON ELECTRONIC COMPONENTS D2FTMicroswitch, SPDT, Plunger, Solder, 3 A, 125 VAC
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.27732
≥1 USD $1.27732
≥10 USD $1.20502
≥100 USD $1.13681
≥500 USD $1.07247
≥1000 USD $1.01176
≥3000 USD $0.95449
Inventory: 2000
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Body Height 6.5mm
Technical
Pre-Travel-Max 0.5 mm
Actuator Travel 0.75 mm
Release Force 20gf
Operating Position 0.217 (5.5mm)
Pretravel 0.020 (0.5mm)
Differential Travel 0.005 (0.12mm)
Overtravel 0.010 (0.25mm)
Contact (DC) Max Rating R Load 2A@30VDC
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Operating Force 150gf
Contact Current Rating 3A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 2A
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Body Breadth 5.8 mm
Body Length or Diameter 12.8mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 3A AC 2A DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series D2F
Published 2004
Packaging Bulk
Operating Temperature -25°C~65°C
Physical
Weight 500mg
Mounting Type Through Hole
Mount Through Hole
Contact Material Silver
