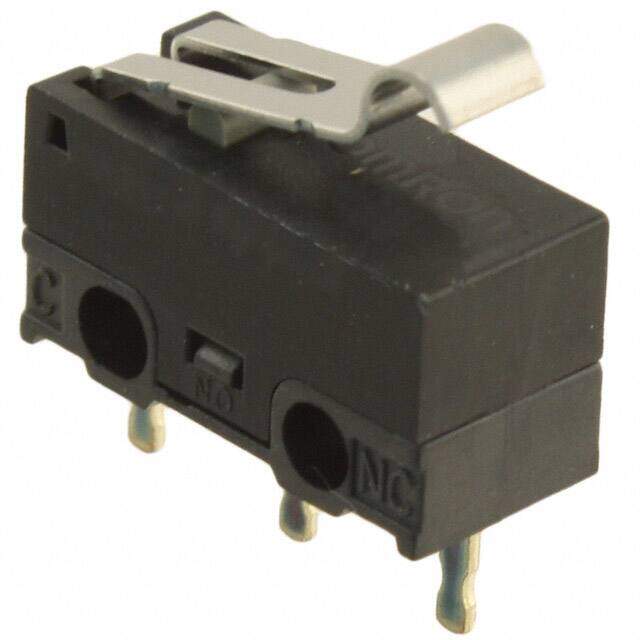

D2F-L3-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Subminiature Basic Switch
PDF
/
Buying Options
Total Price: USD $2.3
Unit Price: USD $2.2968
≥1 USD $2.2968
≥10 USD $2.11992
≥100 USD $1.987744
≥500 USD $1.94348
≥1000 USD $1.54594
≥3000 USD $1.457588
Inventory: 830
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Silver
Mount Screw, Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -25°C~65°C
Packaging Tray
Published 2004
Series D2F
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pin
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC 2A DC
Orientation Straight
Ingress Protection IP40
Current Rating 2A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 12.8mm
Body Breadth 5.8 mm
Actuator Type Lever, Simulated Roller
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 2A
Max Voltage Rating (AC) 125V
Electrical Life 30,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 80gf
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact (DC) Max Rating R Load 2A@30VDC
Overtravel 0.020 (0.5mm)
Differential Travel 0.018 (0.45mm)
Operating Position 0.335 (8.5mm)
Release Force 5.099gf
Actuator Travel 0.5 mm
Dimensions
Body Height 6.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
