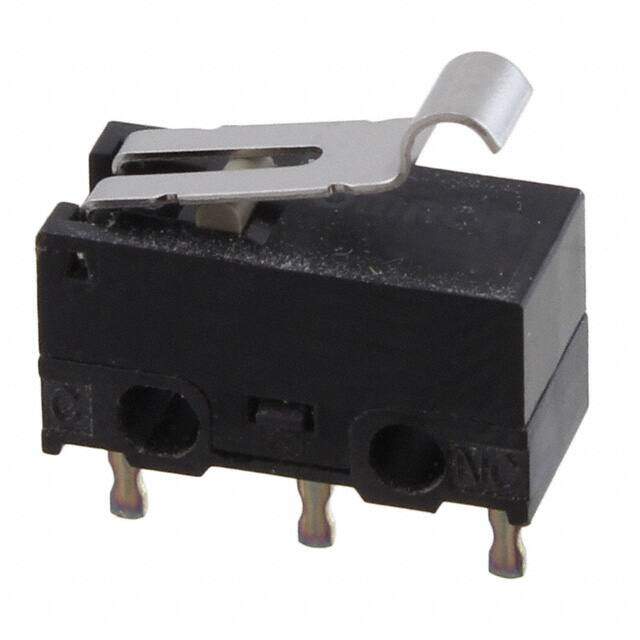

D2F-FL3-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Subminiature Basic Switch
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.8368
≥1 USD $3.8368
≥10 USD $3.38272
≥100 USD $3.15744
≥500 USD $3.00696
≥1000 USD $2.55596
≥3000 USD $2.330434
Inventory: 375
Minimum: 1
-
+
Technical Details
Technical
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC 500mA DC
Orientation Right Angle
Ingress Protection IP40
Current Rating 1A
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Actuator Mounted Right Side
JESD-609 Code e4
Series D2F
Published 2004
Packaging Tray
Operating Temperature -25°C~65°C
Actuator Travel 0.5 mm
Release Force 2.039gf
Operating Position 0.335 (8.5mm)
Differential Travel 0.018 (0.45mm)
Overtravel 0.020 (0.5mm)
Contact (DC) Max Rating R Load .5A@30VDC
Contact (AC) Max Rating R Load 1A@125VAC
Contact Current(AC)-Max 1A
Operating Force 40gf
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 0.5A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Body Breadth 6.5 mm
Body Length or Diameter 12.8mm
Voltage - Rated AC 125V
Termination Style PC Pin
Physical
Mounting Type Through Hole, Right Angle
Mount Screw, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Body Height 5.8mm
