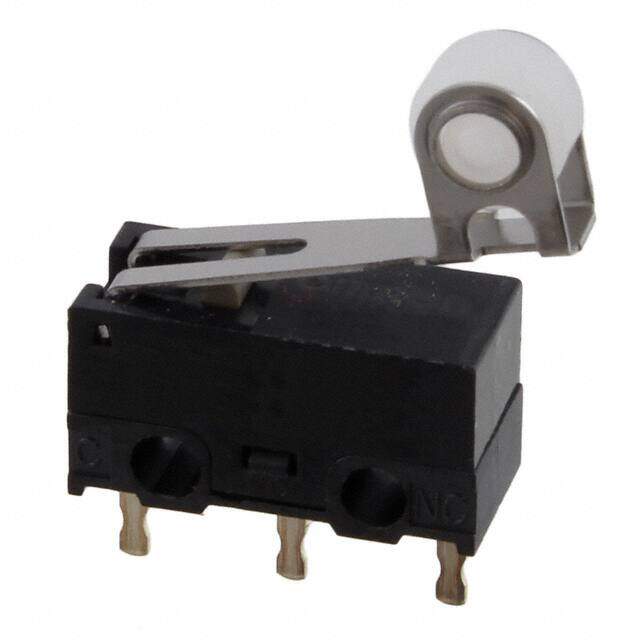

D2F-01L2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
MICROSWITCH, HINGE ROLLER, 0.1 - More Details
PDF
/
Buying Options
Total Price: USD $2.73
Unit Price: USD $2.728
≥1 USD $2.728
≥10 USD $2.41032
≥100 USD $2.24928
≥500 USD $2.142272
≥1000 USD $1.885752
Inventory: 3337
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Body Height 6.5mm
Width 5.8mm
Length 15.55mm
Technical
Release Force 5.099gf
Operating Position 0.512 (13.0mm)
Differential Travel 0.020 (0.5mm)
Overtravel 0.022 (0.55mm)
Contact (DC) Max Rating R Load .1A@30VDC
Operating Force 80gf
Contact Current Rating 100mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Contact Current(DC)-Max 0.1A
Insulation Resistance 100MOhm
Contact Resistance 30mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Termination Style PC Pin
Current Rating 100mA
Depth 5.8mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series D2F
Published 2004
Packaging Bulk
Operating Temperature -25°C~65°C
Physical
Actuator Material Resin, Stainless Steel
Mounting Type Through Hole
Mount Screw, Through Hole
Contact Material Gold
Supply Chain
Factory Lead Time 10 Weeks
