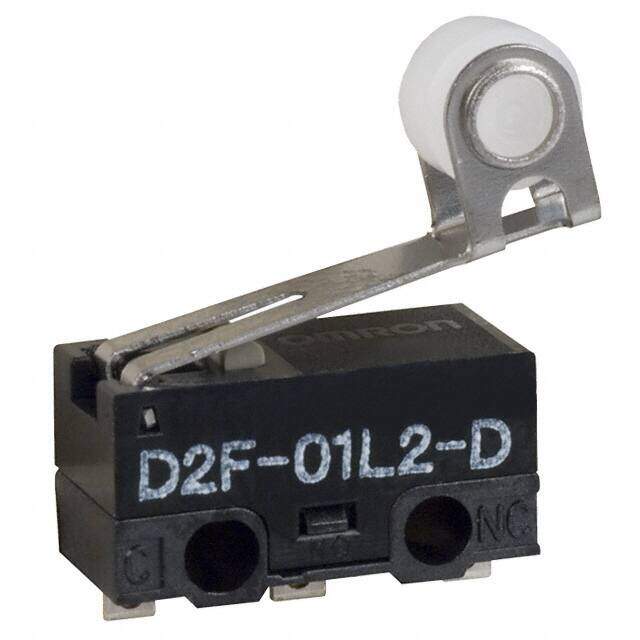

D2F-01L2-D image
Favorite
D2F-01L2-D image
Favorite
RoHS
RoHS RoHS compliant
Package 100
Category Switches / Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 30V
PDF
/
Buying Options
Total Price: USD $3.74
Unit Price: USD $3.74
≥1 USD $3.74
≥10 USD $3.29736
≥100 USD $3.077184
≥500 USD $2.93062
≥1000 USD $2.491174
≥3000 USD $2.271315
Inventory: 1437
Minimum: 1
-
+

Technical Details

Technical

Operating Force 80gf
Contact (DC) Max Rating R Load .1A@30VDC
Overtravel 0.022 (0.55mm)
Differential Travel 0.020 (0.5mm)
Operating Position 0.512 (13.0mm)
Release Force 5.099gf
Contact Current Rating 100mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Contact Current(DC)-Max 0.1A
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Termination Style Solder Lug
Current Rating 100mA
Depth 5.8mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.70.00
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series D2F
Published 2004
Packaging Tray
Operating Temperature -25°C~65°C

Physical

Actuator Material Resin, Stainless Steel
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount, Screw, Solder
Contact Material Gold

Supply Chain

Factory Lead Time 13 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Body Height 6.5mm
Length 15.55mm
